The IDM MUX8 Integrated Service Multiplexer provides dual E1 interfaces, adopts a 19-inch 1U standard chassis, with 4 slots plus 1 expansion slot, optional 220V/-48V dual power supply, and supports FXS/FXO, magneto, EM 2/4-wire, RS232/RS422/RS485 and other services. The two E1 groups can be configured in mutual backup or timeslot extraction mode.

Dual E1 PCM EquipmentE1 Primary Rate Multiplexing EquipmentVoice PCM EquipmentPCM Equipment Interface Board2E1 PCM Equipment QuotationDual E1 PCM Equipment ManufacturerDual 2M PCM Equipment

I. Overview

The IDM MUX8 Integrated Service Multiplexer is an integrated multiplexing transmission equipment developed by our company. It transmits N×64K data services over the E1 transmission channel while simultaneously supporting 8 channels of 64K voice and data services.

The IDM-MINI8 adopts a standalone structure, which can convert 10/100Base-T Ethernet, voice, V.35, V.24 and other services into E1 data streams for transmission over E1 channels. It is suitable for extending the working distance of interfaces through microwave, DDN private network and other channels, thereby expanding the service coverage.

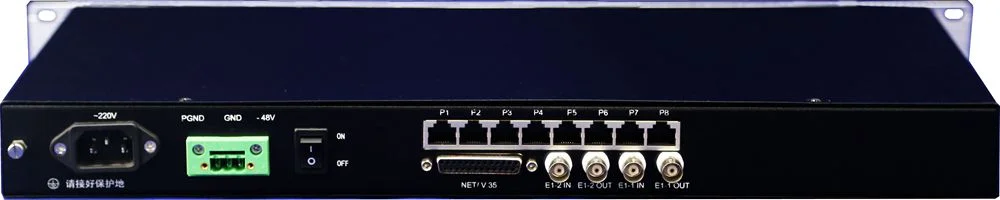

IDM MUX8 Integrated Service Cross-connect Multiplexer Equipment Image

II. Product Features
Adopts 19-inch 1U standard chassis;
Modular structure with low power consumption and high reliability;
Provides dual E1 transmission interfaces;
The two E1 groups can be configured in mutual backup or timeslot extraction mode;
Provides 8 channels of 64K service interfaces, with optional FXO, FXS, V.24, magneto, common battery and EM service cards;
Supports wide-range voltage input: DC -48V or AC 220V, or dual power supply;
Can be used as an optical modem or interface converter.

III. Technical Specifications

1) E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	SupportsITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/32	Signaling	Channel-Associated Signaling

2) Ethernet (FE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤50)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-negotiation

3) Ethernet (GE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤63)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

4) FXO, FXS Interfaces

Audio Range	300Hz~3400Hz	Compression Rate	A-law per ITU G.711
Impedance	Triple complex impedance 200Ω+560Ω//0.1μF	Loop Current	20mA/channel

5) Co-directional 64K Interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced120Ω	Fully compliant with ITU G.703 Recommendation

6) EM2/4-Wire Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding	ITU G.711A-law	Return Loss	≥18dB

7) Magneto Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Ratio	A-law per ITU G.711	Return Loss	≥18dB

8) V.24 Interface

Transmission Rate

Asynchronous≤9600bps; Synchronous64Kbps

Electrical Characteristics

Compliant withCCITT V.28protocol

9) V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps（n=0～31）	Terminal Interface	Compliant withISO2593Specification

10) Power Supply and Power Consumption

Power Supply

AC220V/DC-48V

Power Consumption

≤150W

11) Environmental Conditions

Operating Temperature

-10^oC ~+50^oC

Relative Humidity

0~95% (non-condensing)

12) Product Dimensions

Length×Depth×Height
