IDM Voice365-4 IP Network Radio Transmission Device
The IDM Voice365-4 IP Network Radio Transmission Device can transmit radio audio signals, status, and control information over IP networks. It can be registered to an IoT server or used in a local area network (LAN) for networking. The device supports point-to-point transmission as an extension of radio signals over IP networks, as well as networked transmission for point-to-multipoint control. With four audio channels, it can connect to four radio units or four remote control consoles. Each remote control console can be paired with a PAD [Dispatch Console](/product/) to connect to any radio unit. One remote control console can simultaneously manage multiple radio units, enabling functions such as muting, monitoring, recording, and volume adjustment via the PAD [Dispatch Console](/product/). Audio signals transmitted over IP channels can be shared and distributed remotely, making it ideal for shared control applications of radio audio channels. One radio can be managed and used by up to four users simultaneously.
Gallery
IDM Voice365-4 IP Network Radio Transmission Device can transmit radio audio signals, status, and control information over IP networks. It can be registered to an IoT server or used in a local area network (LAN) for networking.
IDM Voice365-4 IP Network Radio Transmission Device supports point-to-point usage as an extension of radio signals over IP networks, as well as networked transmission for point-to-multipoint control.
IDM Voice365-4 IP Network Radio Transmission Device features four audio signal channels, enabling connection to four radio units or four remote control consoles.
Each remote control console can be paired with a PAD Dispatch Console to connect to any radio unit.
One remote control console can simultaneously control multiple radio units, allowing the PAD Dispatch Console to enable functions such as muting, monitoring, recording, and volume adjustment for each individual radio.
After audio signals are transmitted over IP channels, they can be shared and distributed remotely, making it highly suitable for shared control applications of radio audio channels. One radio can be managed and used by up to four users simultaneously.
@@IMG0@@

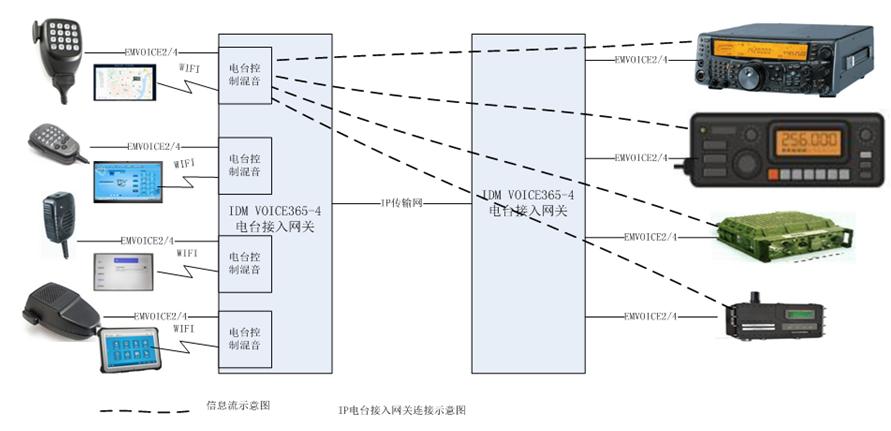

IDM Voice365-4 IP Network Radio Transmission Device Application Schematic
Product Features:
Equipped with 4 audio interfaces at the radio end, including EM signaling; each audio interface can connect to one radio interface.
At the operation control end, features 4 EM2/4-wire interfaces, each capable of connecting to 4 radio units simultaneously, enabling real-time monitoring of up to 4 radios, or performing functions such as monitoring disable, muting, recording, deletion, and addition on any individual radio.
Voice transmission from the console to the radio can be configured in PTT control mode, VAD voice-activated mode, or PAD console operation mode. The console enables transmission enable and reception enable functions.
Features modular design and redundant AC/DC power supply configuration.
Implements dual-path redundant power supply: AC 220V as primary power source, DC +24V as backup. In the event of AC power failure, the device automatically switches to the externally supplied +24V DC power.
Real-time fault detection with LED indicators displaying fault status.
