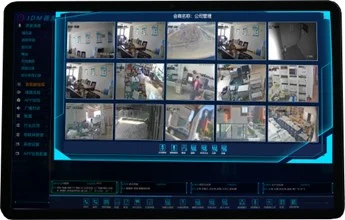

IDM MCC500-P桌面融合通信终端
融合通信终端采用7吋触摸一体机，采用全国产芯片RK3568，2G+16G的配置，不仅功耗低，性能也很强。完全能够胜任音视频调度方面的需求；采用1280*800点阵的显示屏，具有HDMI接口输出，可以外接大屏、投影等。采用WIFI或RJ45链接以太网；MCC-500融合通信终端能够运行IDM音视频电话终端软件，能够实现SIP软交换电话的通话功能，包括音频电话、可视电话、可视会议、信息收发、PTT对讲等；MCC-500融合通信终端也能够实现音视频接入和转发功能，能够实现视频监控、视频会商等功能。
Gallery
title: "IDM MCC500-P Desktop Unified Communication Terminal"
model: "IDM MCC500"
category: "IP Access Terminal"
tags: [
"Command & Dispatch",
"Unified Communication",
"Desktop Dispatch Terminal",
"Dispatch Console",
"Dispatch Terminal",
"Intelligent Desktop Dispatch Terminal"
]
description: "The unified communication terminal adopts a 7-inch touch all-in-one unit, featuring the fully domestic chip RK3568 with 2G+16G configuration, offering low power consumption and strong performance. It is fully capable of meeting audio/video dispatch requirements. It features a 1280*800 dot-matrix display with HDMI output interface, allowing connection to external large screens, projectors, etc. It connects to Ethernet via WiFi or RJ45. The MCC-500 unified communication terminal can run IDM audio/video telephone terminal software, enabling SIP softswitch telephone call functions, including audio calls, video calls, video conferencing, messaging, and PTT intercom. The MCC-500 unified communication terminal can also implement audio/video access and forwarding functions, enabling video surveillance, video consultation, and other functions.",
"cover": "/images/imports/img-dad4bb7f.webp",
"images": [
"/images/imports/img-dad4bb7f.webp"
],
"keywords": "Command & Dispatch,Unified Communication,Desktop Dispatch Terminal,Dispatch Console,Dispatch Terminal,Intelligent Desktop Dispatch Terminal",
"slug": "idm-mcc500-p",
"publishDate": "2026-05-12"
}
Keywords: Command & Dispatch, Unified Communication, Desktop Dispatch Terminal, Dispatch Console, Dispatch Terminal, Intelligent Desktop Dispatch Terminal
I. Device Features
(1). The IDM MCC500-P unified communication terminal adopts an 11.5-inch touch all-in-one unit, featuring the fully domestic chip RK3568 with 2G+16G configuration, offering low power consumption and strong performance. It is fully capable of meeting audio/video dispatch requirements.
(2). The IDM MCC500-P unified communication terminal adopts a capacitive multi-touch all-in-one unit, featuring a 1280*800 dot-matrix display with HDMI output interface, allowing connection to external large screens, projectors, etc. It connects to Ethernet via WiFi or RJ45.
(3). The IDM MCC500-P unified communication terminal can run IDM audio/video telephone terminal software, enabling SIP softswitch telephone call functions, including audio calls, video calls, video conferencing, messaging, and PTT intercom.
(4). The IDM MCC500-P unified communication terminal can also implement audio/video access and forwarding functions, enabling video surveillance, video consultation, and other functions. The host features a 5-megapixel camera.
(5). The host can expand audio interfaces via USB ports and can work with the IDM USB-TALKI for calling or PTT intercom.
(6). The IDM MCC500-P unified communication terminal host has 5 physical buttons: MIC mute, Volume+, Volume-, Call, and PTT. The "Call button" can be configured to directly call the central Dispatch Console, or to pop up on-screen buttons on the touchscreen for point-to-point calling. Pressing "PTT" automatically enters the intercom group for calling, and all group members can receive the call.
(7). The host comes standard with an 8-ohm 5W speaker and corresponding driving capability, delivering clear and powerful sound.
(8). The host can expand multiple USB cameras, allowing selection and switching between multiple angles for video intercom.
(9). The IDM MCC500-P unified communication terminal can also connect keyboards, mice, and other peripherals.
II. Terminal Performance
(1). CPU: Quad-core 64-bit Cortex-A55, main frequency up to 2.0GHz.
(2). GPU: Embedded high-performance 2D acceleration hardware ARM G52 2EE. Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1. 0.8 TOPS computing power.
(3). Multimedia Capability: Supports 4K 60fps H.265/H.264/VP9 video decoding.
(4). Dual-screen Display: Supports HDMI output simultaneously, enabling dual-screen display with different content.
(5). Interface Capability: Supports 1000M adaptive Ethernet; supports WiFi-2.4G, BT-4.1; 4 USB 2.0 host ports and 2 USB 3.0 ports (1 USB 3.0 port is USB_OTG).
III. Audio Interface Performance
(1). Microphone boom/Speaker, 200Hz ~ 18KHz frequency response.
(2). Wideband ADC/DAC 16KHz sampling.
(3). Narrowband Codecs: G.711a/u, G.729AB.
(4). Wideband Codecs: G.722, Opus.
(5). Supports Acoustic Echo Cancellation (AEC).
(6). Noise Reduction (NR).
(7). Packet Loss Concealment.
(8). Dynamic adaptive jitter buffer.
(9). DTMF: In-band audio, Out-of-band – DTMF relay (RFC2833)/SIP INFO.
IV. Typical Applications
(1). Duty room audio/video intercom, access control card swipe video intercom, desktop video intercom terminal, elevator intercom duty host, vehicle-mounted audio/video terminal, wall-mounted audio/video terminal.
(2). Networking applications with SIP softswitch systems.
(3). Networking applications with unified communication dispatch systems.
(4). Networking applications with network broadcast systems.
