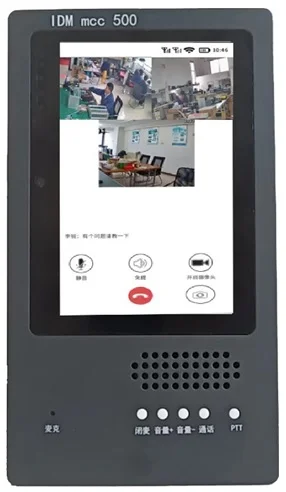

IDM MCC500 Desktop Unified Communication Terminal

Features

(1). The IDM MCC500 Unified Communication Terminal features a 7-inch touch all-in-one design, powered by the fully domestic RK3568 chipset with 2G+16G configuration, offering low power consumption and robust performance. It is fully capable of meeting audio/video dispatch requirements.

(2). The unified communication terminal adopts a capacitive multi-touch all-in-one with a 1280*800 dot-matrix display, featuring HDMI output for connecting to large screens, projectors, etc. It connects to Ethernet via WiFi or RJ45.

(3). The unified communication terminal runs IDM audio/video phone terminal software, enabling SIP softswitch telephony functions, including audio calls, video calls, video conferencing, messaging, and PTT intercom.

(4). The unified communication terminal supports audio/video access and forwarding functions, enabling video surveillance, video consultation, and other features. The host is equipped with a 5-megapixel camera.

(5). The host supports audio interface expansion via USB ports and can work with the IDM USB-TALKI for calling or PTT intercom.

(6). The IDM MCC500 Unified Communication Terminal features 5 physical buttons on the host: MIC mute, Volume+, Volume-, Call, and PTT. The "Call" button can be configured to directly call the central dispatch console, or to pop up on-screen buttons on the touchscreen for point-to-point calling. Pressing "PTT" automatically enters the intercom group for calling, and all group members can receive the transmission.

(7). The host comes standard with an 8-ohm 5W speaker and corresponding driver capability, delivering clear and powerful sound.

(8). The host supports expansion of multiple USB cameras, allowing switching between multiple angles for video intercom.

(9). The host also supports connection of keyboards, mice, and other peripherals.

(10). Custom SIP, WebRTC, and other communication software can be customized.

Terminal Performance

(1). CPU: Quad-core 64-bit Cortex-A55, main frequency up to 2.0GHz.

(2). GPU: Embedded high-performance 2D acceleration hardware ARM G52 2EE. Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1. 0.8 TOPS computing power.

(3). Multimedia Capability: Supports 4K 60fps H.265/H.264/VP9 video decoding.

(4). Dual-Screen Display: Supports simultaneous HDMI output for dual-screen independent display.

(5). Interface Capability: Supports 1000M adaptive Ethernet; supports WiFi-2.4G, BT-4.1; 4 USB 2.0 host ports and 2 USB 3.0 ports (1 USB 3.0 port is USB_OTG).

Audio Interface Performance

Audio Input

(1). Microphone/Speaker, 200Hz ~ 18KHz frequency response.

(2). Wideband ADC/DAC 16KHz sampling.

(3). Narrowband Codecs: G.711a/u, G.729AB.

(4). Wideband Codecs: G.722, Opus.

(5). Supports Acoustic Echo Cancellation (AEC).

(6). Noise Reduction (NR).

(7). Packet Loss Concealment.

(8). Dynamic Adaptive Jitter Buffer.

(9). DTMF: In-band audio, Out-of-band – DTMF relay (RFC2833)/SIP INFO.

Audio Output

(1). The amplifier supports two 8-ohm 5W speakers with dual-channel output.

(2). Standard configuration includes one 8-ohm 5W speaker.

Typical Applications

(1). Duty room audio/video intercom, access control card swipe video intercom, desktop video intercom terminal, elevator intercom duty host, vehicle-mounted audio/video terminal, wall-mounted audio/video terminal.

(2). Networking applications with SIP softswitch systems.

(3). Networking applications with unified communication dispatch systems.

(4). Networking applications with network broadcast systems.

(5). Used as a desktop dispatch console.
