IDM MCC200 Tunnel Ruggedized IP Telephone
The telephone housing is made of anti-static ABS plastic, featuring waterproof, dustproof, and anti-corrosion properties with an IP54 protection rating. The telephone is designed for both desktop and wall mounting, utilizing a newly developed hook switch mechanism with no movable parts on the telephone. The keypad features fully sealed keys and is equipped with emergency call, hang-up, and redial keys.
Gallery
Structural Features
(1). The ruggedized IP telephone housing is made of anti-static ABS plastic, featuring waterproof, dustproof, and anti-corrosion properties with an IP54 protection rating.
(2). The ruggedized telephone is designed for both desktop and wall mounting, utilizing a newly developed hook switch mechanism with no movable parts on the IP telephone.
(3). The ruggedized IP telephone keypad features fully sealed keys and is equipped with emergency call, hang-up, and redial keys.
Main Technical Parameters
(1). Ringing loudness: 80dB
(2). Dialing parameters
n Supports DTMF dialing and pulse dialing
n Pulse dialing pulse rate: 10±1 pulses/s Pulse break-to-make ratio: (1.6±0.2):1
IP Telephone Parameters
(1). Strong system expansion compatibility, supporting standard SIP 2.0 (RFC3261) and related RFC protocols;
(2). Supports one-key direct call to the dispatch console function;
(3). Supports PoE power supply;
(4). Full-duplex intercom function;
(5). Utilizes advanced echo cancellation technology;
(6). Speaker and microphone sensitivity are adjustable;
(7). Optional G.729, G.723, G.711, G.722, G.726 and other voice coding methods;
(8). The system provides recording and recording output, and recorded files can be retrieved and queried at any time;
(9). Can be configured via WEB interface;
(10). Can integrate with network surveillance cameras, allowing surveillance images near the telephone to be transmitted to SIP video telephones
(11). Fiber optic interface can be customized to replace twisted pair cables for long transmission distances, allowing direct connection to 100M media converters and optical port Ethernet switches;
(12). Online software upgrade for the ruggedized IP telephone.

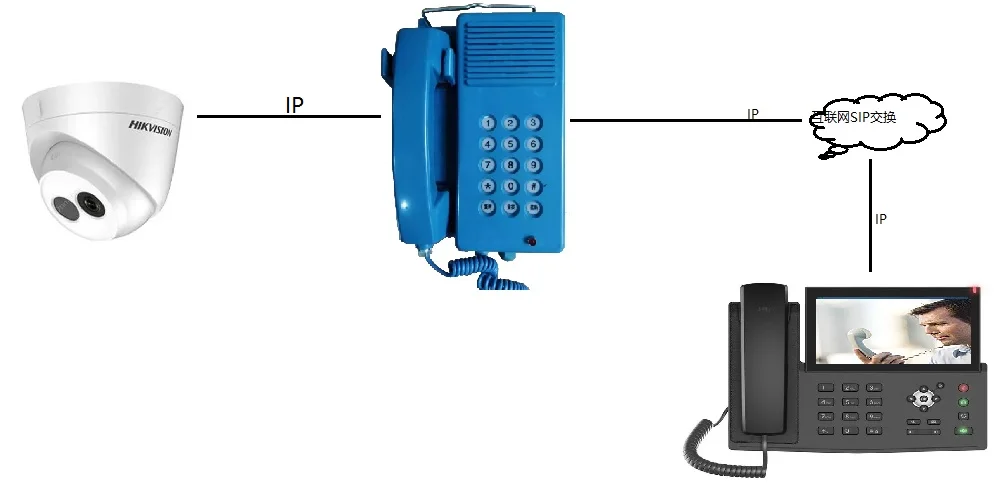

Figure 2.2 SIP Telephone Integrated with Surveillance Camera Video Communication
Operating Instructions
(1). Answering a call: When an external call comes in, the telephone rings. Lift the handset upward from the handset cradle to go off-hook and answer the call. After the call is finished, place the handset back on the cradle to hang up.
(2). Making a call: Lift the handset upward from the telephone to go off-hook. Once you hear the dial tone, proceed to dial. Wait for the ringback tone while waiting for the called party to answer. If you hear a busy tone, press the redial key to redial the last dialed number. To dial a new number, press the "Hang-up" key, and dial after hearing the dial tone.
After the call is finished, place the handset back on the cradle to hang up.
Note: During a call or when asking someone to answer the call, the handset must not be placed on the cradle, otherwise the telephone will automatically hang up. After the call is finished, the handset must be placed back on the cradle for the next call.
Emergency Call
n In case of an emergency, lift the handset from the telephone and press the "Emergency Call" key to establish direct communication between the user and the dispatcher. Under normal circumstances, users must not press the "Emergency Call" key.
n The telephone can only implement emergency calling when the connected dispatch switch supports the emergency call function. The telephone can be configured with an emergency call signaling frequency arbitrarily set within the range of "0-9" and "A-D", based on the emergency call frequency signals that the connected dispatch switch can receive.
Maintenance and Care
(1). Strictly operate under the specified working conditions, avoiding strong vibration and impact to the telephone.
(2). The ruggedized telephone should be regularly brought to the surface for inspection and repair, with emphasis on checking the emergency call, dialing, conversation, and ringing functions;
(3). The ruggedized telephone features an emergency call function, with emergency call number B (frequency combination: 770Hz, 1633Hz);
(4). The SIP telephone features redial and hang-up functions.
