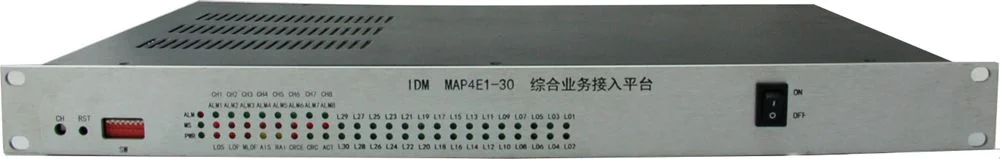

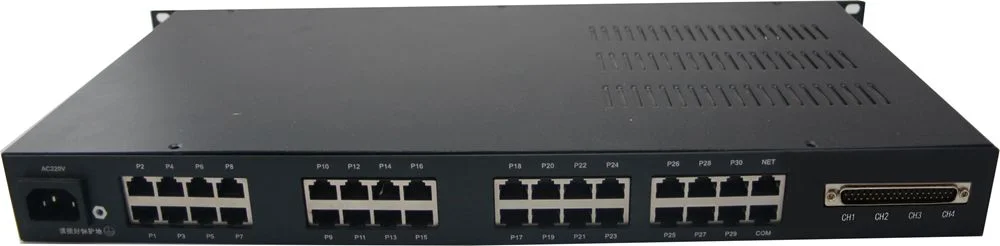

IDM MAP4E1-30 Integrated Service Cross-Connect Multiplexer

Overview

The IDM MAP4E1-30 Integrated Service Cross-Connect Multiplexer is a comprehensive service platform integrating 64K narrowband service access, PCM multiplexing, and 64K timeslot cross-connection.

The IDM MAP4E1-30 is primarily used for service access and cross-connection at the access layer of data communication networks. It features complete synchronization and timing functions, providing non-blocking 64K-level cross-connection across 4 E1 channels, while supporting up to 30 channels of 64K services, including telephone, magneto telephone, common battery telephone, and V.24 data services.

Product Features

19-inch 1U standard chassis for easy installation.

Non-blocking full-timeslot cross-connection across 4 E1 groups;

Host provides 30 channels of 64K (or Nx64K) user narrowband service access;

Main board provides 15 service card slots, with up to two service channels per card;

Voice interfaces support FXO central office automatic telephone, FXS remote automatic telephone, and MAG magneto telephone; data services include V.24/RS232/RS485/RS422, X.50/X.58, co-directional 64K, Nx64K bandwidth V.35/V.36, and Ethernet bridge;

Serial port network management or Ethernet SNMP network management available;

AC 220V power supply or DC -48V power supply available;

4 E1 groups can form point-to-point, chain network, star network, and other topologies.

Technical Specifications

1) E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	SupportsITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/32	Signaling	Channel-Associated Signaling

2) Ethernet (FE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤50)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

3) Ethernet (GE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤63)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

4) FXO, FXS Interfaces

Audio Range	300Hz~3400Hz	Compression Ratio	ITU G.711 A-law
Impedance	Three-element complex impedance 200Ω+560Ω//0.1μF	Loop Current	20mA/channel

5) Co-directional 64K Interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced 120Ω	Fully compliant with ITU G.703 Recommendation

6) EM2/4-line interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding Rate	A-law per ITU G.711	Return Loss	≥18dB

7)        Magneto Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Rate	A-law per ITU G.711	Return Loss	≥18dB

8) V.24 Interface

Transmission Rate

Asynchronous ≤9600bps; Synchronous 64Kbps

Electrical Characteristics

Complies with CCITT V.28 protocol

9) V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps (n=0 to 31)	Terminal Interface	Compliant withISO2593Specification

10) Power Supply and Power Consumption

Power Supply Mode

AC220V/DC- 48V

Total Power Consumption

≤150W

11) Environmental Conditions

Operating Temperature

-10oC ~+50oC

Relative Humidity

0~95% (non-condensing)

12) Product Dimensions

Length×Depth×Height

482×309×44(mm)

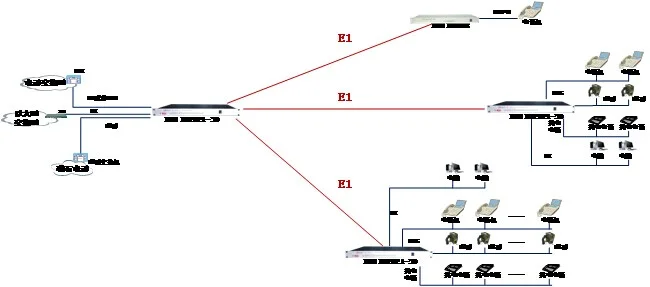

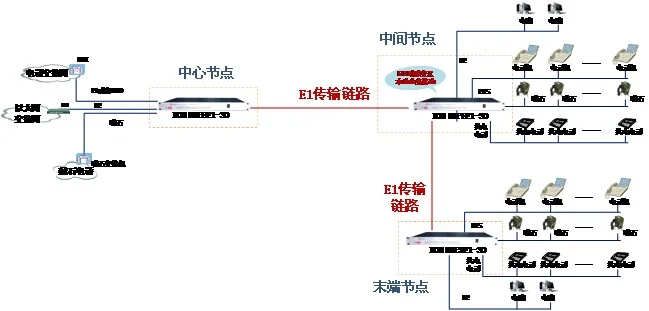

Application Examples
