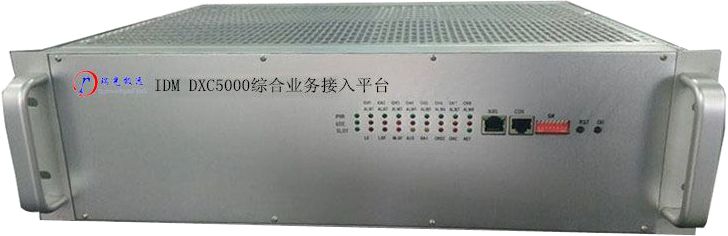

Raytrans PCM Equipment IDM DXC5000 Timeslot Cross-Connect Device

📅Jul 24, 2018
Brief：The PCM Equipment IDM DXC5000 Timeslot Cross-Connect Device is one of the PCM timeslot cross-connect devices designed by our company using dedicated large-scale integrated circuits. It completes the connection between user terminal devices or between user terminal devices and the public switched telephone network through 2M transmission media.
PCM EquipmentPCM Optical TerminalPCM Telephone Optical Terminal

PCM Equipment IDM DXC5000Timeslot Cross-Connect Device is one of the PCM timeslot cross-connect devices designed by our company using dedicated large-scale integrated circuits. It completes the connection between user terminal devices or between user terminal devices and the public switched telephone network through 2M transmission media.

The PCM Equipment IDM DXC5000 Timeslot Cross-Connect Device can utilize 8 standard E1 transmission channels (G.703 standard), adopting the PCM30/31 format, directly providing voice, data, image and other user interfaces. It also provides non-blocking timeslot cross-connect between 8 groups of E1 interfaces and between all user interfaces. Additionally, the PCM Equipment IDM DXC5000 Timeslot Cross-Connect Device supports multiple clock modes to meet the clock requirements of various application environments.

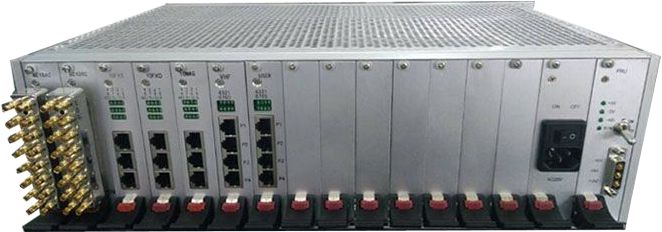

The 8 E1 ports on the main control card can expand up to 240 voice interface channels, and key units can adopt dual-card redundancy backup.

The 8 E1 ports on the main control card can expand up to 240 voice interface channels, and key units can adopt dual-card redundancy backup.

The 8 E1 ports on the main control card can expand up to 240 voice interface channels, and key units can adopt dual-card redundancy backup.
