Patrol Inspection Function Module

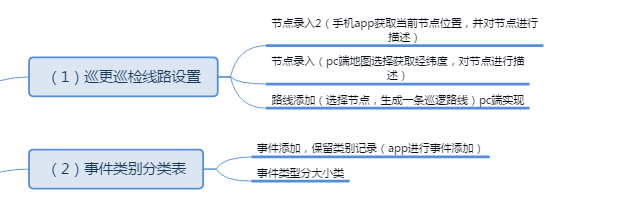

1. Patrol Route Settings

1.1. Node Entry 2 (Mobile app obtains current node location and describes the node)

1.2. Node Entry (PC-side map selection to obtain latitude/longitude and describe the node)

1.3. Route Addition (select nodes to generate a patrol route) implemented on PC

2. Event Category Classification Table

2.1. Event Addition, retaining category records (event addition via app)

2.2. Event types are divided into major and minor categories

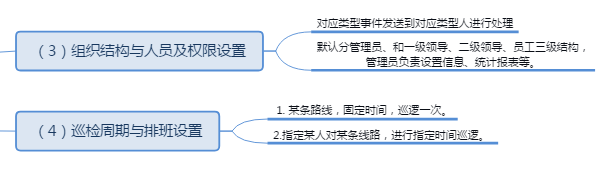

3. Organizational Structure, Personnel, and Permission Settings

3.1. Corresponding event types are sent to corresponding personnel for processing

3.2. Default structure includes Administrator, Level-1 Leader, Level-2 Leader, and Employee (three-level structure). Administrators are responsible for information settings, statistical reports, etc.

4. Inspection Cycle and Shift Scheduling Settings

4.1 A specific route is patrolled once at a fixed time.

4.2. Assign a specific person to patrol a specific route at a designated time.

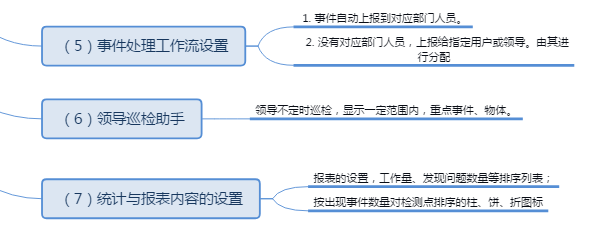

5. Event Handling Workflow Settings

5.1. Events are automatically reported to the corresponding department personnel.

5.2. If no corresponding department personnel exist, report to a designated user or leader, who will assign it.

6. Leader Inspection Assistant

6.1. Leaders conduct unscheduled inspections, displaying key events and objects within a certain range.

7. Statistics and Report Content Settings

7.1. Report settings, sorted lists such as workload and number of issues found;

7.2. Bar, pie, and line charts sorting detection points by the number of events occurring
