Smart Hangar Management System
Keywords: Smart Hangar, Smart Management, Smart Warehouse, IoT Platform, IoT Dispatch, Converged Communication
I System Topology Diagram
II System Composition

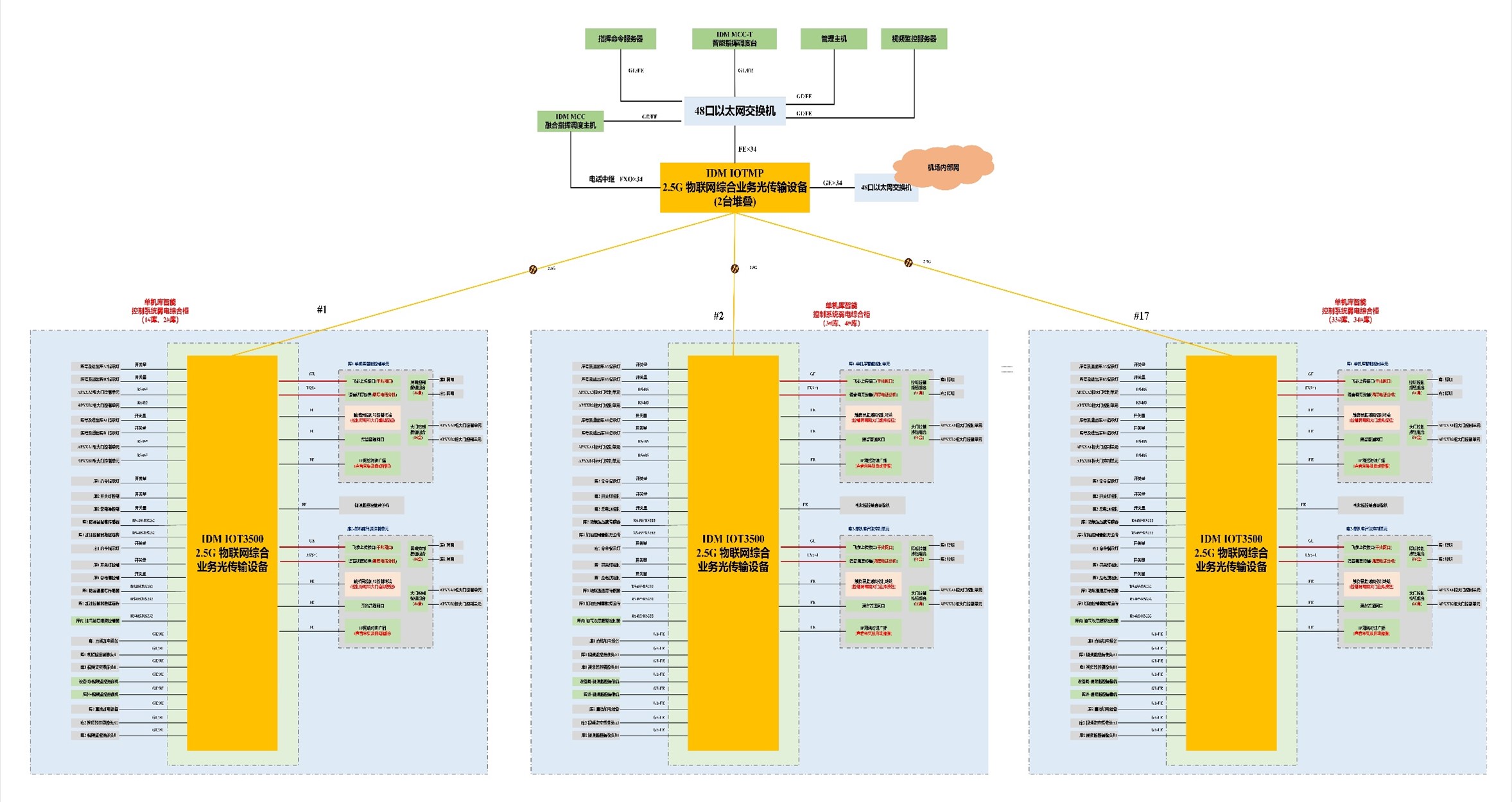

The system topology is shown in the figure above. It mainly implements audio/video command and dispatch from the command center to 34 hangars, as well as monitoring of the operating status of each hangar system.
The command center is deployed with an IDM converged command and dispatch host, a command server, an IDM MCC-T intelligent command dispatch console, a management host, a video surveillance server, 2 sets of IDM IOTMP 2.5G IoT integrated service optical transmission equipment, and 2 48-port Ethernet switches.
For the 34 remote hangars, every 2 hangars share one intelligent control system low-voltage electrical integrated cabinet, with 1 set of IDM IOT3500 2.5G IoT integrated service optical transmission equipment deployed.
The command center and each intelligent control system low-voltage electrical integrated cabinet are interconnected via optical fiber. The remote IDM IOT3500 2.5G IoT integrated service optical transmission equipment aggregates and accesses the IDM IOTMP 2.5G IoT integrated service optical transmission equipment at the command center through 2.5G optical lines, realizing the upload of hangar audio/video signals, flight parameter business data, dispatch telephones, and status data of each hangar operating system, as well as the transmission of issued commands.
2.1 Command Center System Functions
2.1.1 IDM MCC-T Intelligent Command Dispatch Console
(1). Supports the center end to select any hangar for broadcasting;
(2). Supports the center end to group multiple hangars into one intercom group for simultaneous broadcasting;
(3). Supports the center end to monitor any hangar. Also supports programmed patrol monitoring;
(4). Supports hangars to call the center end via buttons and conduct intercom;
(5). Supports triggered broadcasting associated with hangar IoT detection events. After a hangar is triggered, it can broadcast to both the hangar and the center end simultaneously;
(6). Supports scheduled playback file lists for all terminals;
(7). Supports real-time inserted voice with priority higher than file broadcasting;
(8). Through the center end's telephone gateway, supports interoperability between hangar broadcasting and the telephone system;
(9). Supports audio gateway access, capable of playing CD, analog microphone, and analog mixer audio;
(10). Automatic broadcasting modes include scheduled trigger, event trigger, loop playback, etc.
2.1.2 IDM MCC Converged Command and Dispatch Host
The IDM converged command and dispatch host is a multi-functional converged communication platform integrating multiple system function modules such as IP broadcasting system, audio/video intercom, IP telephone system, and program-controlled switching.
The IDM converged communication platform can provide unified centralized configuration management and audio/video communication service support for local or remote network audio devices.
All functions are implemented through PC professional client software, APP terminal application software, and other products, including voice, video, data, command, and plan dispatching functions. It can also achieve seamless integration with different communication systems through professional gateway service modules, providing interconnection and interworking of data/image/voice for various terminals and communication command platforms. The specific functions are as follows:
l Voice dispatch
l Video dispatch
l Video surveillance
l Intercom
l Voice/Video conference
l Voice/File broadcasting
l Message command dispatch
l Plan dispatch
l GIS dispatch
l Call record management
l Multimedia record management
l User resource management
l Trunk/Routing management
l Unified terminal parameter management
l System permission management
2.1.3 Architecture Description
(1). Converged Communication System
Installed on a local server or service end, it completes terminal device configuration, registration, grouping, management, and other functions;
(2). Converged Communication Platform
A graphical interface operation platform that can be installed on WINDOWS and Linux operating platforms. Through real-time communication with the converged communication system, hangar administrators/operators use this platform to view device status and perform operations such as single-point or area paging, broadcasting, conferencing, and video linkage;
(3). Broadcast/Intercom APP
A graphical interface operation platform supporting Android system installation. It provides mobile personnel with convenient functions such as paging, broadcasting, and device status viewing through this APP;
(4). Access Terminals
Analog telephones, SIP phones, SIP network speakers, SIP wall-mounted speakers, SIP sound columns, network voice intercom, network video intercom, broadcast gateways, mobile APPs, network cameras, etc.
2.1.4 System Functions
(1). Supports the center end to select any hangar for broadcasting;
(2). Supports the center end to group multiple hangars into one intercom group for simultaneous broadcasting;
(3). Supports the center end to monitor any hangar. Also supports programmed patrol monitoring;
(4). Supports hangars to call the center end via buttons and conduct intercom;
(5). Supports triggered broadcasting associated with hangar IoT detection events. After a hangar is triggered, it can broadcast to both the hangar and the center end simultaneously;
(6). Supports scheduled playback file lists for all terminals;
(7). Supports real-time inserted voice with priority higher than file broadcasting;
(8). Through the center end's telephone gateway, supports interoperability between hangar broadcasting and the telephone system;
(9). Supports audio gateway access, capable of playing CD, analog microphone, and analog mixer audio;
(10). Automatic broadcasting modes include scheduled trigger, event trigger, loop playback, etc.
2.2 IoT Dispatch Platform
2.2.1 Command Server
This server mainly completes the issuance and service functions of remote control commands from the command center to hangars (indicator lights, doors, main power supply, light switches, etc.).
2.2.2 Composition and Solution
The IoT-based hangar data acquisition service platform implements functions such as data acquisition, protocol conversion, data processing, and visual display for network devices, sensor perception devices, and various control devices within the hangar. It achieves the goals of full digitalization, virtualization, intensification, and intellectualization of hangar facility and equipment management, including automatic acquisition of key operating data (power supply devices, fueling devices, equipment switches, electricity consumption, water consumption), remote real-time monitoring, and intelligent early warning, strengthening real-time supervision of hangar operation status. Through analysis and data mining of various operating data at the hangar site, it provides functions such as real-time operation monitoring, process control, operation simulation, abnormal operation early warning, optimized operation decision-making, and risk analysis for hangar operation management.
A perception layer system is established. The perception layer equipment mainly includes power supply devices, fueling devices, main power supply, oil pumps, oil tanks, fans, online instruments and meters, automatic control systems, and temperature/humidity environment monitoring sensors, which form the foundation of the IoT technology architecture. Through devices such as intelligent IoT gateways, data protocol conversion is implemented, enabling conversion of multiple communication interfaces and protocols, automatic acquisition of operating data from various PLCs and drivers, and establishment of data communication with various PLCs and drivers through IoT protocols, ultimately forming a complete perception layer system.
The perception layer provides a large amount of operating data from equipment, facilities, and IoT sensors. Only by deeply mining the relationships among various data and reasonably utilizing this data can the establishment of the IoT system be meaningful, i.e., the IoT dispatch platform. Firstly, through preliminary processing and display of various data from the perception layer, it achieves over-limit alarming of real-time hangar operating data; secondly, through summary and calculation of production operation data, it generates various charts for daily hangar operation management, facilitating management personnel in summarizing and analyzing daily operation conditions; through in-depth analysis and mining of hangar operating data, it achieves various abnormal early warnings, optimized dispatch analysis, and comprehensive decision-making guiding hangar operation management, as well as equipment analysis, cost analysis, and risk analysis guiding airport comprehensive operation decision-making. The IoT dispatch platform can provide flexible programmed control for data acquisition devices and controls within the hangar.
2.2.3 System Functions

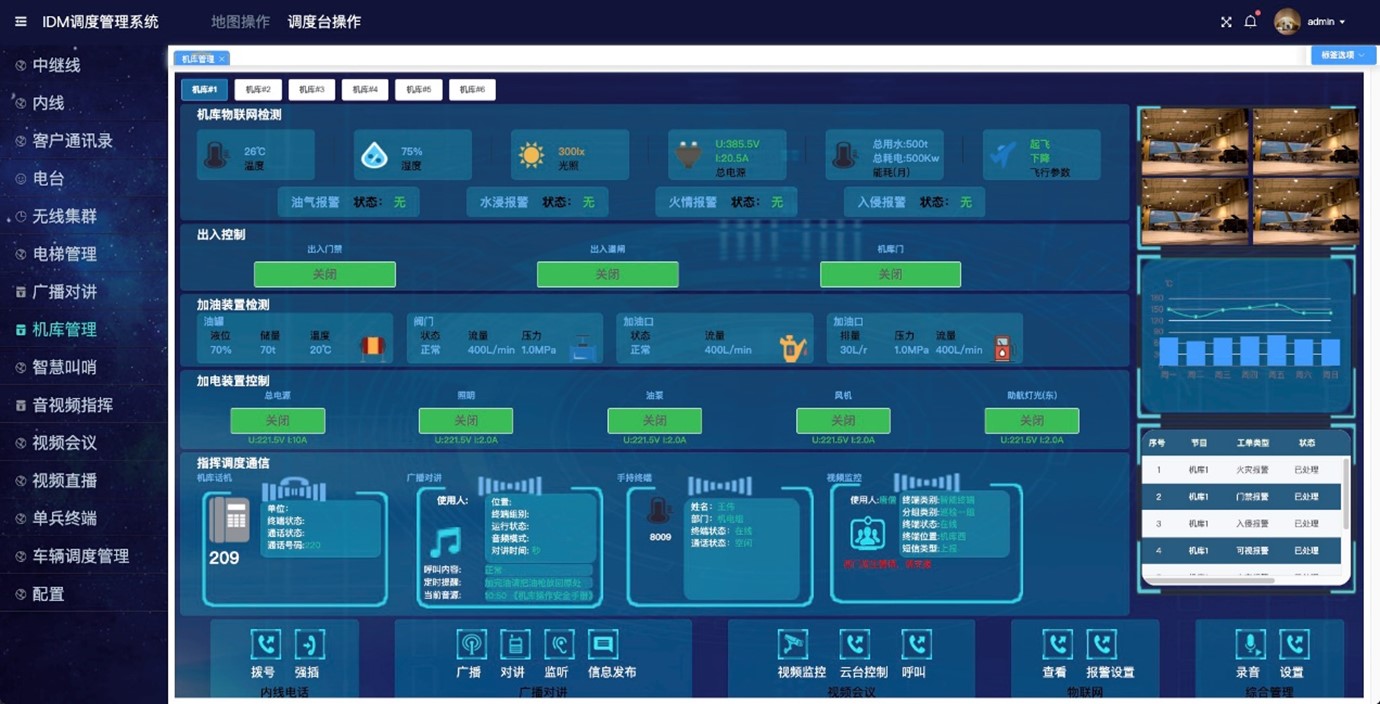

Remote operations can be performed at the center end, and local operations can also be performed through touch screen control consoles provided in the hangar; for all collectors, location, name, IP address, range, unit, acquisition rate, etc. can be set, and current data and historical data can be viewed; for all controllers, manual control, automatic control, and switching rules between manual and automatic can be set; control parameters can be subscribed, and control rules can be compiled; it has big data processing functions for hangar parameter acquisition and operation, such as big data early warning, data statistics, and hangar situation display.
Remote surveillance management realizes automatic real-time acquisition and remote real-time transmission of operating data and equipment operation status data in automatic control systems such as hangar fueling and power supply, incorporating early warning and alarming functions, displaying over-limit alarms of various data intuitively through flashing, sound, pop-up message boxes, SMS, etc. At the same time, alarm handling plans and historical similar alarm prompts are incorporated into alarm processing, making alarm handling intelligent and improving processing efficiency, realizing comparative analysis of real-time collected data, visually displaying data fluctuations in curve form, and allowing viewing of historical data at any time.
Equipment asset management revolves around daily equipment management business contents such as archives ledgers, maintenance, repair, overhaul and technical modification approval, and spare parts inventory, forming an informatized equipment management system. At the same time, various operating data of equipment can be summarized and statistically processed to form various analysis and prediction management.
Decision analysis management invokes various operating data stored in the system to achieve analysis and monitoring of equipment, energy consumption, cost, etc. Through various charts such as tables, flip boards, line charts, bar charts, scatter plots, pie charts, funnel charts, radar charts, Sankey diagrams, parallel coordinate plots, maps, word clouds, waterfall charts, embedded web pages, rich text, dual Y-axis charts, etc., analysis of hangar data monitoring items can be performed.
The IDM IoT dispatch platform can provide flexible programmed control for data acquisition devices and controls within the hangar.
(1) Remote operations can be performed at the center end, and local operations can also be performed through touch screen control consoles provided in the hangar;
(2) An operation button is assigned to each collector and controller on the dispatch console;
(3) For all collectors, location, name, IP address, range, unit, acquisition rate, etc. can be set, and current data and historical data can be viewed;
(4) For all controllers, manual control, automatic control, and switching rules between manual and automatic can be set; control parameters can be subscribed, and control rules can be compiled;
(5) It has big data processing functions for hangar parameter acquisition and operation, such as big data early warning, data statistics, and hangar situation display.
Hangar control contents include:
(1) Hangar lighting control, which can be remotely or locally controlled, supporting detection and alarming based on current or illuminance. Supports linkage control with personnel entry and indoor illuminance;
(2) Signal light control for aircraft entering and exiting the hangar, which can be remotely or locally controlled, supporting detection and alarming based on current or illuminance. Supports both local and center end control;
(3) Monitoring and control of the hangar main power supply, supporting current detection and voltage detection methods. Can be remotely or locally controlled;
(4) Parameter monitoring of linear power supply devices;
(5) Parameter monitoring of linear fueling devices;
(6) Reserved flight parameter upload interface; (using Gigabit Ethernet or USB interface, software only performs security confirmation)
(7) Integrated integration of video surveillance system; camera PTZ operations, recording, query, etc. can be performed;
(8) Common functions and operations are prompted in menu form; screen refresh time is no more than 2 seconds;
(9) When a single fault occurs, the alarm response time of the fault screen is no more than 5 seconds;
(10) After a control command is issued, the response time for on-site equipment to begin executing the action should be less than 2 seconds;
(11) Provides help and operation guidance functions, enabling users to complete various operations through this feature;
(12) Provides information on compiled time-based or event-based automatic control program application software, including: program content, programmer name, compilation time, modifier name, modification time, and modification details;
(13) Records system operations, confirmation times of various alarm messages, and the names of confirming personnel;
(14) Shall provide detailed descriptions of the system software architecture and operating principles, such as central control software and controller control software; the software shall be modular in design for flexible assembly; the design principles and structure of the system real-time database shall be described in detail.
(15) The software shall adopt a layered, user-oriented, open, standardized, and modular architecture to facilitate system function expansion and updates, with strong fault tolerance and short response times.
(16) The application software shall include at least the following functions: graphical operation, alarm management, programming, historical data recording and management, report generation, trend chart analysis, and system management.
(17) The graphical operation function shall display engineering floor plans, equipment layout diagrams, monitored system schematics, and other relevant graphics in color; legends shall be simulated representations of actual equipment, with real-time dynamic data of the system or equipment displayed adjacent to the legends. Equipment statuses such as on/off, manual/automatic, and fault conditions, as well as parameters including temperature, humidity, and electrical quantities, shall be presented through graphics, animations, reports, and other means. All equipment shall be controllable and monitorable online using only a keyboard or mouse without interrupting normal system operation; an integrated voice prompt platform shall provide timely notifications for various operations and alarms in standard Mandarin.
