IDM Smart Construction Site: IoT Equipment and Facility Safety Control Functions
I. Overview of Equipment and Facility Safety Control Functions
Fully leverage IoT technology and mobile applications to enhance on-site control capabilities. Through terminal devices such as RFID, sensors, cameras, and mobile phones, real-time monitoring, intelligent perception, data collection, and efficient collaboration are achieved throughout the construction process, improving on-site management capabilities.
Safety monitoring covers a variety of commonly used equipment, including hoisting equipment, lifts, unloading platforms, and mobile machinery. It supports integration with the equipment's built-in systems and also allows deployment of multiple monitoring sensors, such as air quality, temperature/humidity, and gas leak sensors. Data reported by these sensors is collected and analyzed to enable predictive warning and emergency response.
Connect detection equipment data from critical equipment (e.g., tower cranes, excavators) to the construction site IoT system via an IoT gateway.
Integrate logistics vehicle information, such as location and cargo data provided by the driver APP, and push relevant information to construction site managers.
Push equipment hazard warning information to the construction site smart dashboard, leadership APP, PC dispatch terminals, and command display screens.
Environment-facility linkage: For example, high wind forecasts trigger management notifications for tower cranes. Wind speed detection values prompt on-site reminders for tower crane operations. Rain forecasts and water accumulation detection trigger alarms for pit bottom operations.
Minimum distance alarm between operating machinery and workers (e.g., hook-to-helmet distance, cameras detecting workers without helmets in operation zones).
Safety alarms from inspection APPs and video inspections are promptly pushed to relevant personnel.
Record daily inspections and maintenance status of equipment.

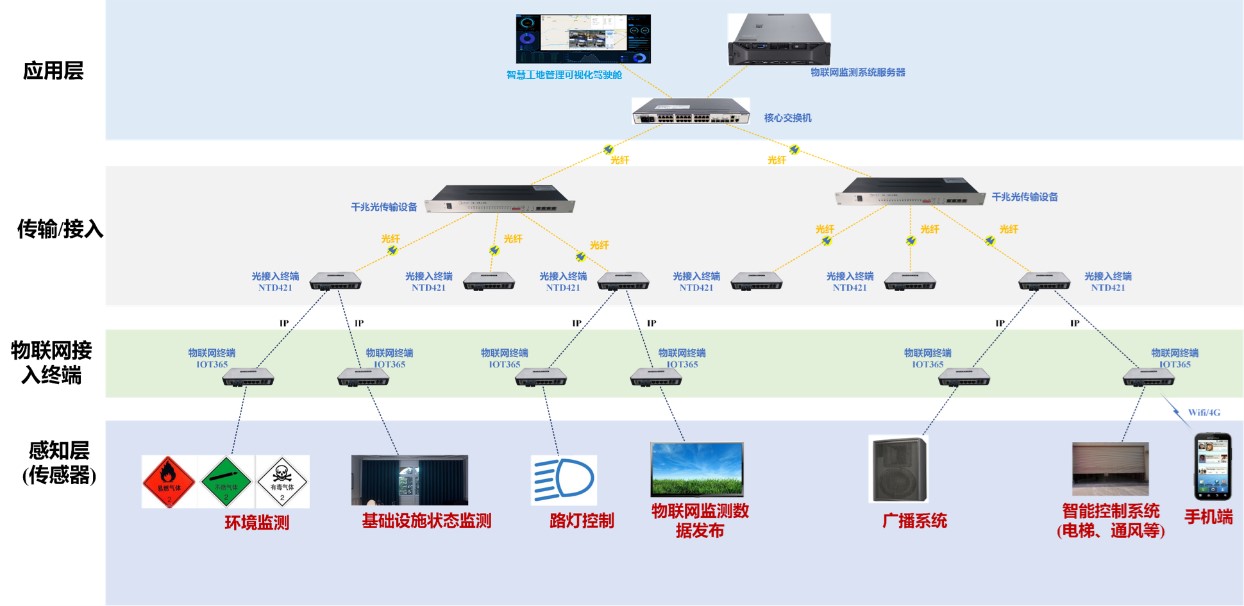

Smart Construction Site IoT System Topology
II. Construction Site Equipment and Facility Control IoT System
Achieves operational status monitoring of various equipment and facilities on the construction site, with a comprehensive monitoring network covering the entire site.

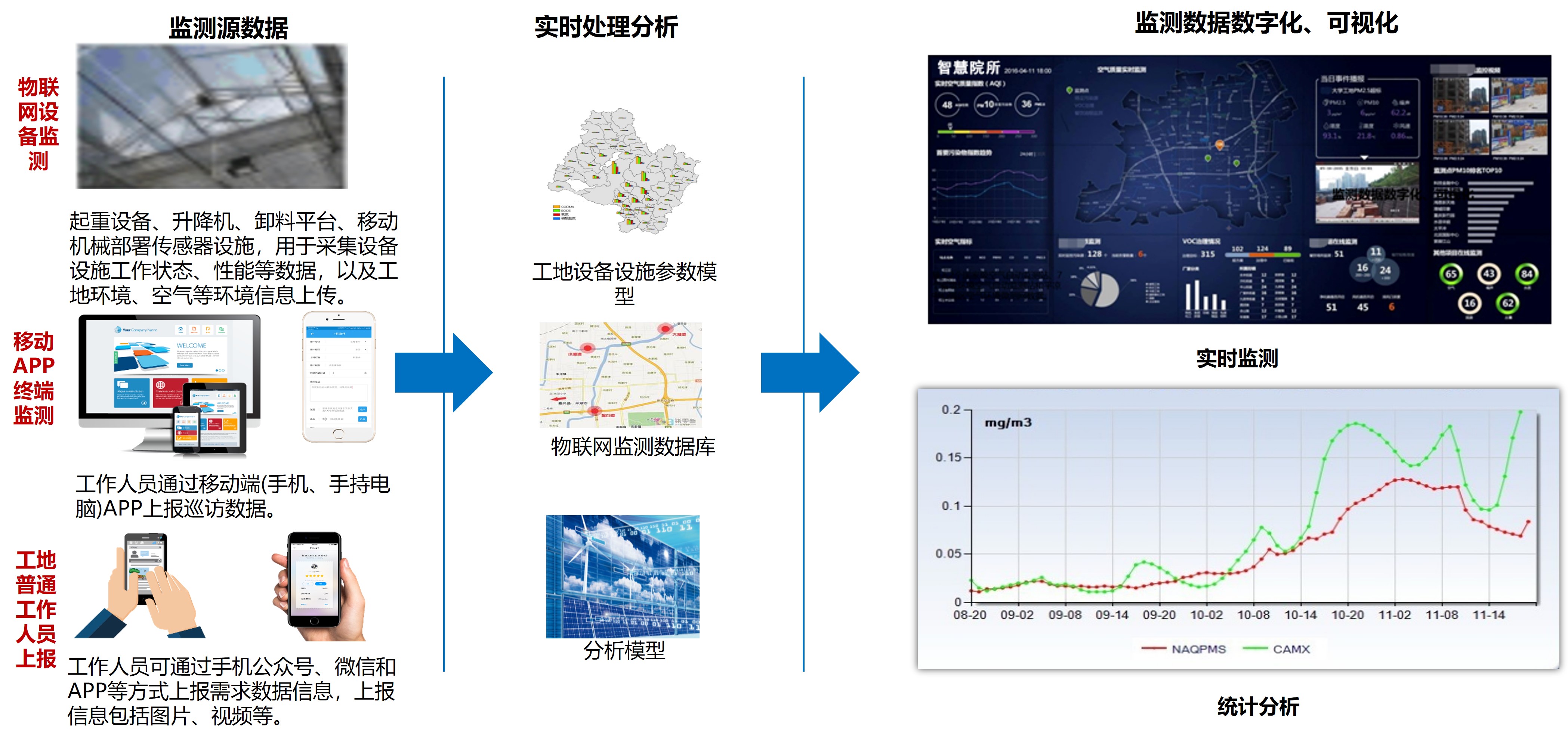

In sudden emergency situations, after the dispatcher inputs event-related information or a third-party system reports event-related information, the emergency response plan process is triggered. The system has a built-in emergency response plan database and can integrate with the emergency response plan system. Once the emergency process is triggered, it automatically links with voice, wired, wireless, video, surveillance, broadcast, GIS, command, and other systems.
IoT System Functional Modules:
- Environmental Monitoring System
Monitors and displays environmental parameters such as methane, wind speed, negative pressure, carbon monoxide, smoke, temperature, and air door status, with self-diagnostic capabilities. The system also supports multi-system integration and linkage with personnel management systems and emergency broadcast systems.
- Fan Monitoring System
u Dual-redundancy monitoring via video and fan rotation sensors
u Speed monitoring, current monitoring, noise monitoring, bearing temperature monitoring, and fan on/off control
u Edge computing control algorithms
- Drainage System
u PLC control, automatic monitoring and recording of observation hole water pressure, water temperature, drain hole flow rate, drainage ditch flow rate, and surface observation hole water level and temperature
u Edge computing control
Compressed Air System: Shared data access
Power Supply Monitoring
u Real-time collection, monitoring, control, protection, and alarm for key power parameters
u Remote control, setpoint configuration, signal reset, feeder switch locking, and energy metering functions
u Enables unattended operation of substations
Water Treatment System: Shared data access
Heating System: Shared data access
Intelligent Positioning System
u RFID tags (dual tags: high-frequency for positioning and identification, low-frequency for charging dock positioning to record charging parameters, work schedules, etc.)
- Video Analytics
u Foreign object alarm, energy-saving alarm, belt misalignment alarm, personnel violation detection alarm, electronic fence, and other functions
- Fire Monitoring
u Fire detection system. Monitors gas concentrations including O2, N2, CO, CH4, CO2, C2H4, C2H6, C2H2, C3H8, etc., with 24-hour continuous cyclic monitoring. Through identification and analysis of spontaneous combustion indicator gases, temperature changes at ignition points are predicted and reported in a timely manner, providing a scientific basis for preventing and managing spontaneous combustion and accidents.
u Data interfacing system: Shares gas analysis results to the big data platform for use by other collaborative systems
- Pressure Monitoring System

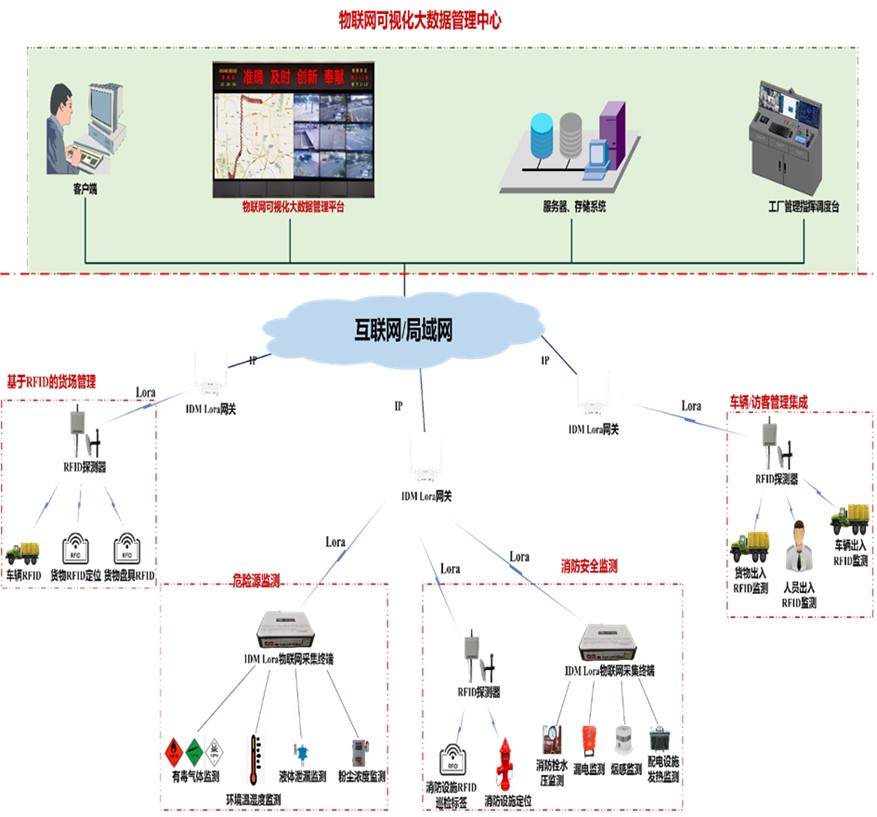

u IoT continuous pressure detection and reporting, connected to nearby LoRa gateways via LoRa wireless interfaces, and on-site pressure inspection terminals (with Bluetooth and WiFi data interfaces).
