IDM Converged Communication Mobile Command & Dispatch System
Keywords: 4G handheld soldier terminal, LTE soldier terminal, ad-hoc networking soldier device, smart soldier terminal, soldier mobile terminal, soldier video backhaul
I. System Overview
In recent years, with the advancement of technology and informatization, to meet the actual mobile command business needs of users such as fire protection, public security, and military forces, our company has launched a converged communication mobile command & dispatch system, realizing converged emergency command in various scenarios such as fire rescue, natural disaster relief, field training, and emergency rescue, achieving business convergence and sharing as well as efficient command.
This system consists of hardware and software including a ground command center system, a mobile command center system, a wireless transmission system, and front-end smart soldier terminals (including IDM smart soldier handheld large-screen terminals, IDM smart soldier PADs, and IDM smart soldier APP). The system supports multiple communication networking methods such as MESH COFDM ad-hoc networking, 4G LTE, wireless bridges, and satellite communication, realizing multiple dispatch functions such as voice dispatch, video dispatch, audio/video dispatch, SMS dispatch, GIS dispatch, BeiDou short message communication, and audio/video consultation, meeting the requirements of multimedia emergency command.
II. Networking Solutions

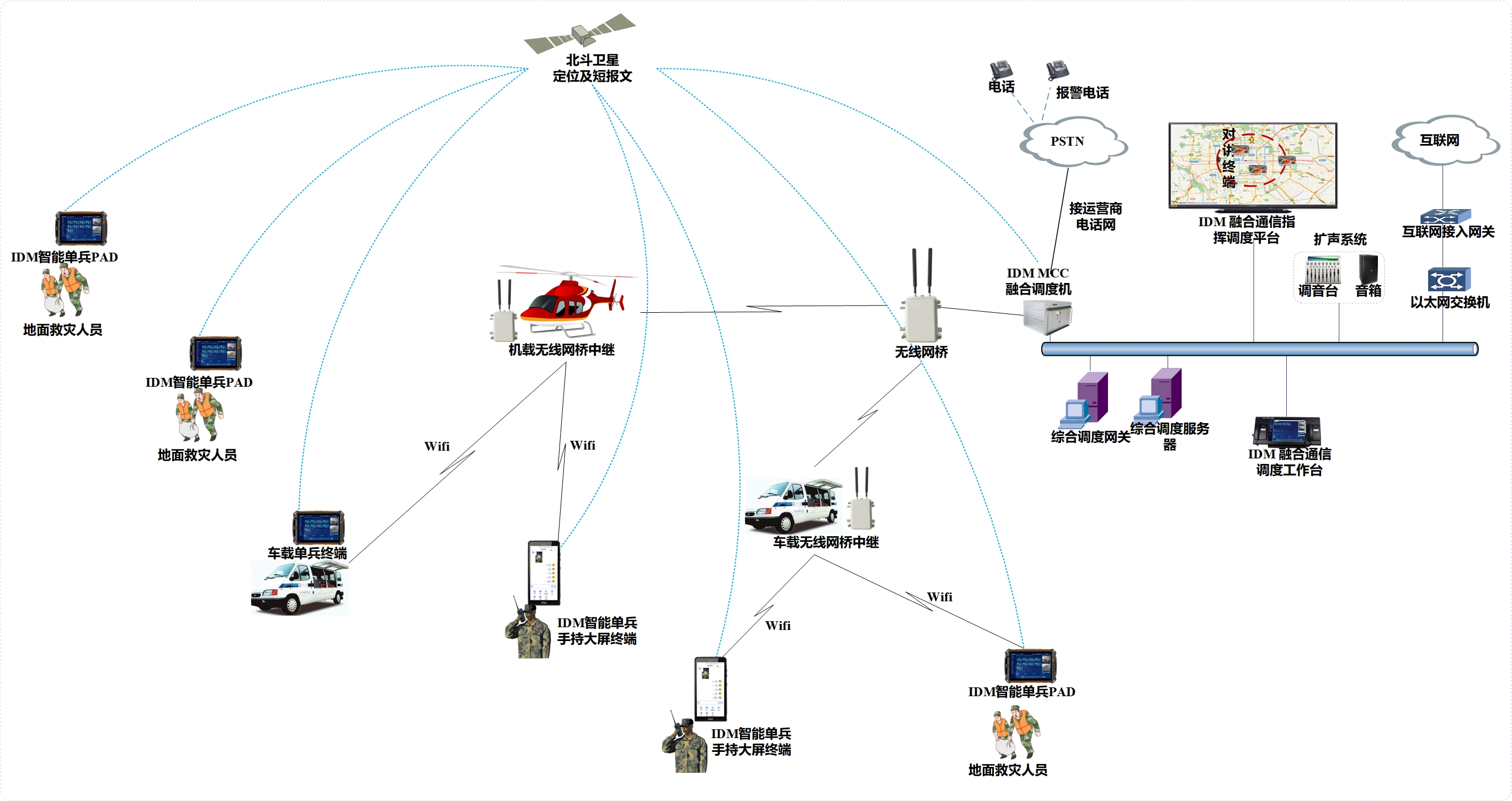

The system supports multiple communication networking methods such as MESH COFDM ad-hoc networking, 4G LTE, wireless bridges, and satellite communication. The following are the application topology diagrams of three networking methods respectively.
2.1 MESH COFDM Ad-hoc Networking
In this system, the business flow is designed as follows: front-end smart soldier terminals access UAVs or vehicle-mounted MESH relay radios via 2.4G/5.8G wireless MESH, and finally access the IDM MCC converged dispatch switch at the ground command center, thereby backhauling front-end data to the command center. Meanwhile, through the integrated dispatch gateway at the command center, voice convergence and interworking with the narrowband PDT system and PSTN system are realized. The dispatch console deployed at the command center can implement multimedia command & dispatch services.
2.2 4G LTE Networking
In this system, the business flow is designed as follows: front-end smart soldier terminals access the 4G LTE mobile internet/4G LTE private network via 4G LTE wireless, and finally access the IDM MCC converged dispatch switch at the ground command center, thereby backhauling front-end data to the command center. Meanwhile, through the integrated dispatch gateway at the command center, voice convergence and interworking with the narrowband PDT system and PSTN system are realized. The dispatch console deployed at the command center can implement multimedia command & dispatch services.
2.3 Wireless Bridge Networking
In this system, the business flow is designed as follows: front-end smart soldier terminals access UAVs or vehicle-mounted wireless bridge relays via wireless WIFI, and finally access the IDM MCC converged dispatch switch at the ground command center, thereby backhauling front-end data to the command center. Meanwhile, through the integrated dispatch gateway at the command center, voice convergence and interworking with the narrowband PDT system and PSTN system are realized. The dispatch console deployed at the command center can implement multimedia command & dispatch services.
III. Main Functions
3.1 On-site Supervision
Front-end personnel upload real-time positioning and movement tracks, record and save on-site audio/video data through the IDM smart soldier handheld large-screen terminal, front-end IDM smart soldier PAD, and IDM smart soldier APP, while maintaining communication with the command center. The command center reviews real-time on-site images and saves videos, realizing effective upload of front-end information and rapid issuance of command center instructions, achieving supervision and recording of on-site conditions.
3.2 Real-time Calling
Front-line personnel conduct two-way intercom with the command center platform through front-end devices, facilitating timely reporting and instruction delivery as well as unified action command. The system supports echo cancellation and noise suppression, avoiding crosstalk and background noise. It features high-quality speakers, maintaining high-quality intercom even in noisy outdoor environments.
3.3 Real-time Video
Front-end IDM smart soldier handheld large-screen terminals and front-end smart soldier terminals (including IDM smart soldier handheld large-screen terminals, IDM smart soldier PADs, and IDM smart soldier APP) support video capture at multiple resolutions (720P/1080P). Video backhaul is realized using multiple communication technologies such as MESH ad-hoc networking, 4G LTE, wireless bridges, or satellite communication, facilitating real-time viewing by the command center to grasp on-site conditions. While viewing videos, video files can be saved and bound to terminal device IDs or personnel information for later review and management.
3.4 Real-time Audio/Video Calling
Front-end smart soldier terminals (including IDM smart soldier handheld large-screen terminals, IDM smart soldier PADs, and IDM smart soldier APP) can directly dial users in the contacts list for audio/video communication.
3.5 Audio/Video Conference
Also known as video consultation, video dispatch, or audio/video intercom. Used for video dispatch and conferencing between video cameras, soldier terminals, and dispatch consoles. Local video sources can be front/rear cameras of soldier terminals, USB cameras, or WIFI-direct connected cameras.
3.6 Real-time Positioning
Front-line IDM smart soldier handheld large-screen terminals, front-end IDM smart soldier PADs, and IDM smart soldier APP support GPS/BD positioning systems. The recorder can transmit location information to the backend in real time via MESH ad-hoc networking, 4G LTE, wireless bridges, or satellite communication. Positioning information is displayed in real time on the GIS electronic map. Trajectory tracking can also be performed for selected terminals, enabling better personnel supervision.
3.7 Visual Command
Combining GIS one-map, video backhaul, and voice communication, resources are integrated for visual display, helping the command center achieve mobile informatization and intelligence. It supports multiple dispatch functions such as voice dispatch, video dispatch, audio/video dispatch, SMS dispatch, GIS dispatch, BeiDou short message communication, and audio/video consultation, making decision-making more timely, intelligent, and efficient.
3.8 GIS One-map
Visual display on the GIS map includes basic personnel information, call group information, device status, IoT information, and key areas. For video users, current video surveillance images can be viewed directly on the GIS interface. Management personnel can use box selection on the GIS to view all resource types in the selected area, enabling reasonable task allocation and decision instruction issuance.
3.9 IM Instant Messaging
Provides group communication with voice, text, positioning, images, and pictures. An instruction notification text interaction display window is provided on the audio/video interface. Users can switch to instant messaging functions at any time to send and receive location, voice, text, numerical values, images, and short videos.
3.10 Information and Instruction Reception
Used to receive text SMS instructions from the central end, requiring confirmation upon receipt.
3.11 Data Retrieval
Query related documents from the server.
3.12 Smart Soldier APP
The soldier terminal of this system provides an Android APP version that can be installed on any Android operating system terminal.
IV. Main Product Introduction
4.1 Converged Dispatch Service Software Platform
4.1.1 Voice Dispatch Function

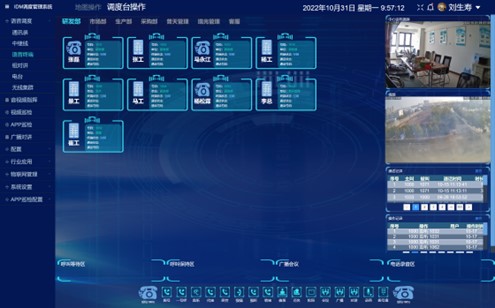

Voice dispatch functions mainly include all basic communication and supplementary service functions of softswitch communication, common dispatch functions, dispatch conference functions, recording, SMS, fax, system management, dispatcher management, and other related functions. The console supports command & dispatch for the following types of communication terminals, including dialing, monitoring, call pickup, hold, barge-in, forced release, transfer, night service, roll call, polling, conferencing, broadcast, intercom, ringer off, recording, surveillance access, queuing, and dial pad calling.
4.1.2 Video Dispatch Function

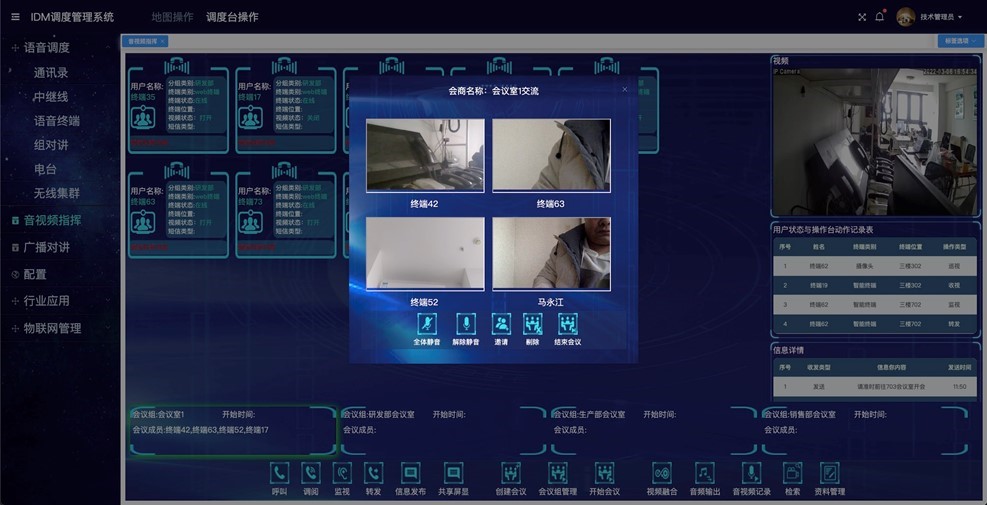

The converged video dispatch module mainly realizes the access of various video sources and implements transcoding, mixing, and forwarding of various video sources through the video server. The accessed video sources include video surveillance systems, video conference systems, soldier systems, broadband trunking terminals, video phones, and other video sources.
4.1.3 GIS Dispatch Function

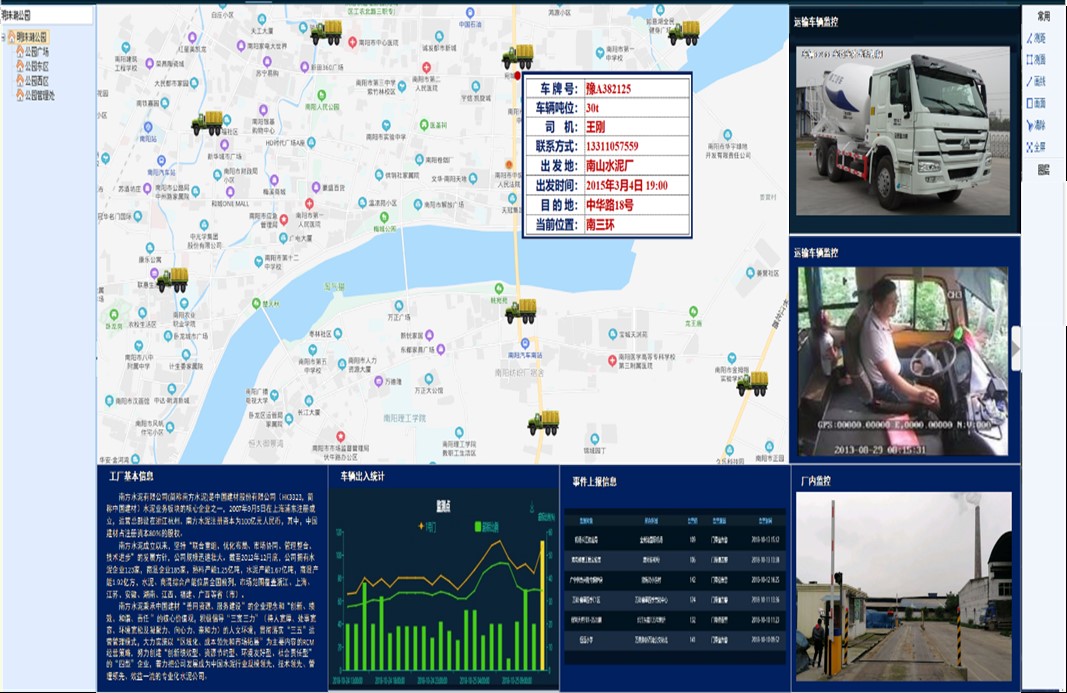

The system can be linked with the existing GIS system. Combined with the actual business needs of industry users for command & dispatch, it fully utilizes the intuitive display capability of GIS to centrally command and uniformly regulate various multimedia resources and devices based on maps, integrating information most relevant to commanders such as regional geographic information, video surveillance points, and positioning information with the integrated emergency command platform, facilitating commander operations and realizing multimedia command & dispatch such as voice dispatch and video surveillance viewing, maximizing the role of the integrated emergency command platform and improving the work efficiency of center staff.
4.1.4 Mobile Converged Intercom Communication
(1) Intercom Call
Intercom calls to mobile terminals can be implemented through the console, with intercom preemption for speaking rights and real-time monitoring of intercom status.
(2) Intercom Group Call
Multiple intercom groups can be configured on the console. Calls to intercom groups can be implemented through the console, and all mobile terminals under the intercom group can achieve intercom preemption for speaking rights.
(3) Video/Image Backhaul
Mobile terminals proactively send text, images, and videos to the console, where they can be viewed and downloaded.
(4) Video/Image Distribution
Through the console, images and videos backhauled from mobile terminals can be distributed to other mobile terminals for viewing.
(5) Video Conference
Video conferences can be initiated through the APP on mobile terminals, enabling video conferencing between soldiers with the APP installed.
(6) Video Surveillance Viewing
Video surveillance images can be viewed through the APP on mobile terminals.
4.2 IDM Smart Soldier PAD

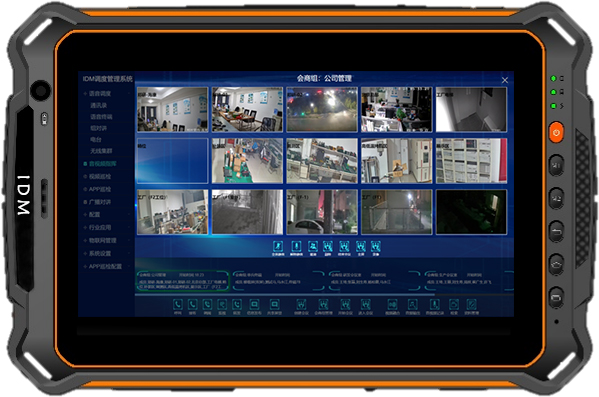

4.2.1 Appearance Display

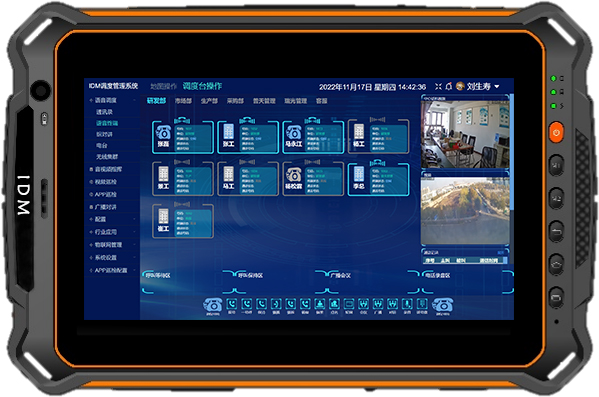

4.2.2 Related Parameters
|
Parameter Name
|
Parameter Value
|
| --- | --- |
|
Device Dimensions
|
237.5mm (Height) × 157mm (Width) × 23mm (Depth)
|
|
Device Weight
|
Less than 855g (including antenna and standard battery)
|
|
Battery Capacity
|
8000mAH
|
|
Screen Size
|
8 inches
|
|
Resolution
|
1920×1200
|
|
Touch Screen
|
Supported
|
|
Front Camera
|
5 Megapixels
|
|
Rear Camera
|
13 Megapixels
|
|
Flash
|
Supported
|
|
CPU
|
8-core 2.0GHz
|
|
Built-in Storage
|
3GB RAM + 32GB FLASH
|
|
Speaker Power
|
2.5W (Max)
|
|
Headphone Jack
|
3.5mm audio jack
|
|
24-PIN Interface
|
Supported
|
|
USB
|
Type-C 2.0 (supports PTG)
|
|
Positioning
|
GPS, BeiDou, GLONASS
|
|
Wi-Fi
|
Supports 2.4G and 5G, IEEE802.11b/g/n
|
|
Bluetooth
|
4.1 EDR
|
|
Public Network Operating Bands
|
l GSM: 900/1800/1900
l UMTS: B1/B2/B8
l LTE: Band 1/2/3/4/5/7/8/20/26/28/38/39/40/41
|
|
SIM Card Type
|
Supports physical SIM cards (dual slot, MicroSIM card)
|
|
Sensors
|
Ambient light sensor, proximity sensor, gyroscope, gravity sensor, geomagnetic sensor, barometer
|
4.3 IDM Smart Individual Soldier Handheld Large-Screen Terminal
4.3.1 Appearance Display
4.3.2 Product Features
The overall design adopts a traditional walkie-talkie appearance style, combined with innovative design based on the actual business scenarios of industry users, featuring a compact design and rugged styling.
The main product features are as follows:
(1) Rich communication transmission methods, with optional support for MESH COFDM, 4G LTE, wireless WIFI, satellite communication, and other methods;
(2) Excellent performance, meeting the needs of professional users
u High-definition voice quality, dual-MIC noise reduction, capable of normal operation under strong background noise
u High-power speaker design for clear voice commands in high-noise environments
(3) Industry-leading multimedia dispatching solution
u A single terminal can complete point-to-point calls, group calls, SMS/MMS, video backhaul, mobile office, and other related tasks
u Supports up to 1080P 30fps HD video transmission, dispatching, and distribution for more effective decision-making
u Clear images and visible details guaranteed even under low-light and dark conditions
u Supports external cameras, Bluetooth PTT (Push To Talk), and various other accessories for comprehensive support of industry applications
(4) More flexible public and private network support. Supports dual-mode operation and can access GSM (Global System for Mobile communication), UMTS (Universal Mobile Telecommunications System), and LTE (Long Term Evolution) networks as a public network terminal
(5) Supports dual SIM cards for public and private network dual-card dual-standby (private network 1.4G only). Private network LTE + public network 2G (voice, SMS), dual-card dual-standby.
(6) Supports combined positioning via GPS (Global Positioning System), BeiDou, and GLONASS (Global Navigation Satellite System)
u Combined positioning via three methods for higher stability and reliability
(7) High-end configuration with domestic 8-core CPU for smoother operation
u High-end domestic 8-core CPU (Central Processing Unit) configuration, meeting high-end smartphone standards, with stronger multitasking capabilities and a perfect balance between operating speed and power consumption
(8) Customized according to industry user requirements, easy to use, rugged and durable, suitable for harsh application environments
u 5.5-inch touch screen for improved handheld comfort and lighter weight;
u IP68 high protection rating.
4.3.3 Related Parameters
|
Parameter Name
|
Parameter Value
|
| --- | --- |
|
Device Dimensions
|
152.5mm (Height) × 75.4mm (Width) × 12.5mm (Depth)
|
|
Device Weight
|
Less than 198g (including antenna and standard battery)
|
|
Battery Capacity
|
4200mAH
|
|
Screen Size
|
5.5 inches
|
|
Resolution
|
1920×1080
|
|
Touch Screen
|
Supported
|
|
Front Camera
|
8 Megapixels
|
|
Rear Camera
|
13 Megapixels
|
|
Flash
|
Supported
|
|
CPU
|
8-core 4x2.0GHz+4x1.5GHz
|
|
Built-in Storage
|
3GB RAM + 32GB FLASH
|
|
External Storage
|
MicroSD, supports up to 128G
|
|
Speaker Power
|
2.5W (Max)
|
|
Positioning
|
GPS, BeiDou, GLONASS
|
|
Wi-Fi
|
Supports 2.4G and 5G, IEEE802.11b/g/n
|
|
Bluetooth
|
4.1 EDR
|
|
Public Network Operating Bands
|
l GSM: 900/1800/1900
l UMTS: B1/B2/B8
l LTE: Band 1/2/3/4/5/7/8/20/26/28/38/39/40/41
|
|
SIM Card Type
|
Supports physical SIM cards (dual slot, MicroSIM card)
|
|
Sensors
|
Ambient light sensor, proximity sensor, gyroscope, gravity sensor, geomagnetic sensor, barometer
|
