1. Airport Broadband Converged Communication Platform Functional Description

1.1 Professional Voice Trunking Communication Functions

The IDM converged communication platform creates a professional trunked intercom mode in a broadband network environment. Following the grouping mode of narrowband trunked systems, it provides users with large-area, multi-operational-unit, multi-level voice trunking dispatch functions, including group calls, private calls, talkgroup scanning, priority assignment, and other professional trunking communication features. It is a multimedia mobile command system suitable for real-time command and monitoring of large-scale mobile groups. It can serve as a beneficial supplement to narrowband trunked communication systems, such as in areas not covered by private networks like underground spaces, and is not limited by private network coverage, enabling nationwide communication. In addition to voice trunking in broadband environments, it can also interoperate with existing local narrowband trunked networks, enabling mixed grouping of broadband and narrowband terminals and unified dispatch.

The main trunking communication functions include: group call communication, private call communication, talkgroup scanning, self-created temporary groups, quick return to primary talkgroup, priority setting (queuing and barge-in/forced release mechanisms), quick group switching, online member list, text message and image sending, talkgroup recording query and playback, and personalized contacts.

In addition to retaining the original narrowband trunked voice intercom mode, the IDM converged communication platform adds many practical functions based on network characteristics and command business needs. The main functions are as follows:

1.1.1 Group Call Communication

Group call is the most frequently used communication mode in trunked communications, enabling one-to-many calling. Users can initiate or receive voice calls within their group through the client program. According to professional trunked intercom characteristics, group calls operate in half-duplex mode.

The IDM platform can set different call buttons based on terminal type, including: soft PTT button (applicable to all smart terminals), dedicated PTT button (broadband video transmission terminals, law enforcement recorders, smart watches), and volume key PTT (broadband video transmission terminals, mobile phones).

1.1.2 Private Call Communication

The system provides point-to-point full-duplex calling mode, ensuring real-time bidirectional voice transmission. The system provides private call functionality, which through re-encoding, guarantees the personal privacy and business confidentiality of user conversations.

1.1.3 Talkgroup Scanning

The scanning function enables terminals to monitor multiple talkgroups simultaneously, preventing missed information from other groups due to failure to switch in time. The scanning function requires authorization and scan range configuration by the system management server.

1.1.4 Self-Created Temporary Talkgroups

This feature allows terminal users to create talkgroups for unexpected or temporary events and invite relevant personnel to join for group call communication, without requiring administrator assignment. Temporary groups are time-limited; the survival time of user-created temporary groups can be flexibly selected from 4 hours to 24 hours. After the survival time expires, the talkgroup is automatically deleted, avoiding long-term occupation of channels and server resources.

Temporary talkgroups are used the same way as regular groups. When creating a temporary group, members can be set to automatically join the temporary group without individual notification, enabling convenient, fast, and efficient temporary grouping.

1.1.5 Primary Talkgroup Priority Playback and Quick Return

When the platform administrator creates users, a primary talkgroup is set for each user. The primary talkgroup has priority playback during scanning. If a user switches to another talkgroup and enables scanning, voice communication on the primary talkgroup will be scanned and played with priority. A quick return button for the primary talkgroup is also provided—clicking it returns the user to the primary talkgroup without manual group switching.

1.1.6 Priority Setting (Queuing and Barge-in/Forced Release Mechanisms)

According to professional trunked communication requirements, all users are assigned corresponding priorities based on different levels. High-priority users have the right to occupy channel resources first. If the current group call channel is occupied, high-priority users do not need to queue and can obtain the channel through the barge-in/forced release function. Users with the same priority follow the queuing mechanism based on the order of PTT preemption.

The IDM converged communication platform subdivides 9 priority levels for all terminal users, which can be flexibly configured according to business needs.

1.1.7 Quick Group Switching

To facilitate terminal users in quickly and accurately switching talkgroups in actual operations, the terminal call main interface provides a sliding window for flexible and convenient talkgroup selection. Users can also quickly return to the primary talkgroup via the primary talkgroup shortcut key.

1.1.8 Online Member List

Broadband terminals can display the online member list of each talkgroup, allowing timely understanding of online broadband terminal personnel within the group, ensuring the effectiveness of real-time services such as video push or request reporting. Historical call records also allow playback of talkgroup calls at any time, ensuring no information is missed.

1.1.9 Text Message and Image Sending

In addition to voice communication, all members within a talkgroup can also exchange text messages and images, enriching communication methods among group members. Through timely aggregation of various information, commanders or field personnel can maximize their awareness of surrounding information.

1.1.10 Talkgroup Recording Query and Playback

Talkgroup calls are recorded in real time, and reported video is recorded in real time. All business data is automatically stored on the storage server. The system provides audio/video search functions for user retrieval and playback.

All call records of terminal group calls are recorded in the background. If users did not hear clearly, they can play back again, which also facilitates post-event queries. Recordings are time-limited based on storage space and will be cyclically overwritten when the storage limit is reached.

To ensure terminal security, the program automatically deletes temporarily stored audio/video files upon system exit.

1.1.11 Personalized Contacts

System administrators can configure personnel and device information as needed. Terminal users can also set personal information themselves. Members can add each other to contacts for quick personal calls.

1.1.12 Flexible Mobile Video Reporting and Push

The IDM converged communication platform supports flexible push of network-connected images to large screens at command centers at all levels, temporary command post monitors, command vehicle TVs/monitors, and portable command tablets. Images can be captured by fixed cameras or reported in real time by mobile terminals. Image reporting can be either active reporting by the terminal or proactive requests from higher levels to lower levels.

All converged communication platform terminals (mobile command terminals, broadband video transmission terminals) serve as mobile video sources. The system backend assigns advanced user permissions to these professional tools, enabling secondary handling of reported images, with the ability to push horizontally and vertically to one or more devices. If these terminals also have advanced permissions, they can continue pushing video to relevant personnel or devices. Moreover, these image-receiving terminals can utilize the trunking group call function, providing a practical means for multiple responsible personnel to jointly command field personnel reporting images.

1.1.13 Fixed Image Retrieval and Push

The IDM converged communication platform can connect to the user's local video surveillance network. Through the converged communication management platform, authorized users can import image resource lists, request access to images within their permission scope for viewing, and flexibly push them to various output devices, portable command terminals, handheld broadband video transmission intercom terminals, etc. This maximizes the application scope of video surveillance, popularizes image applications, and provides strong image resource support for field personnel.

1.1.14 Video Conference System Support

The IDM converged communication platform enables video conferencing with simplex voice. Devices such as mobile command terminals, broadband video transmission terminals, and video output terminals can serve as branch conference terminals, playing real-time conference audio/video or pushing it to video output devices for display on TVs or large screens. They can also serve as audio/video capture devices, transmitting on-site audio/video back to the video conference system backend, which can then route the terminal's audio/video resources to other venues for display.

In emergency or temporary situations, frontline commanders can use mobile command terminals to quickly set up a simple single-venue image video conference, using the image push function to send the speaker's image to relevant participants' Pads and broadband video transmission terminals. Participants focus on the speaker's image and use the intercom PTT to speak in reverse when needing to contribute.

1.1.15 GIS-Based Graphical Command Mode

Modern command modes are gradually evolving from single voice command to video command based on surveillance systems, and now to visualized command based on GIS systems. Through the integrated access platform of voice, video, positioning, data, and other resources, a comprehensive, three-dimensional command system is achieved, enabling the rear to understand on-site conditions through multiple means in a timely manner and issue effective instructions to the front.

The IDM converged communication platform can leverage the user's existing GIS map resources, using the platform's map service software module for map interface display. Commanders can directly push important alarm information on the map to mobile command terminals carried by leaders. Leaders can view the real-time distribution of various on-site resources on the map, view on-site video, the real-time handling process of alarms, and situation briefings. They can also communicate directly with the command center, frontline personnel, and other units/organizations/individuals through the communication subsystem.

Resources currently displayable on the map include vehicles (GPS, Beidou shipborne positioning), broadband video transmission terminals, mobile phones, law enforcement recorders, fixed cameras, and other mobile positioning information. Each device type is displayed with different icons and independent layers, which can also be displayed independently as needed.

Commanders can create temporary groups by circle-selecting on the map, automatically switching all terminals within the selected range to that group, enabling rapid unified command of all personnel within a designated area.

1.1.16 Audio/Video Storage and Retrieval System

Talkgroup calls are recorded in real time, and reported video is recorded in real time. All business data is automatically stored on the storage server. The system provides audio/video search functions for user retrieval.

1.1.17 Powerful System Management Platform

The IDM converged communication platform is equipped with a powerful system management platform. All server functions, user organizational structure, user account permissions, terminal device permissions, business data queries, platform logs, and platform operation statistics are managed through the management platform. Management roles are divided into platform administrators and user administrators. Platform administrators are responsible for user account configuration and permission assignment; user administrators are responsible for user business data.

1.2 Frontend Wireless Video Integrated Platform Functions

1.2.1 Information Transmission Function

The wireless video integrated platform is equipped with multiple interfaces and can receive returned image information from collection terminals through on-site dedicated networks, satellite networks, LTE wireless networks, or HDMI physical interfaces, providing voice and image communication for field personnel. All collected information can be transmitted back to the command center in real time.

1.2.2 Transmission Channel Establishment

The platform supports wired and LTE private network communication access, ensuring interconnection with the command center, enabling image, data, and voice communication, and ensuring real-time command and deployment of on-site confrontation forces.

1.2.3 Individual Soldier Image Transmission Function

The platform supports audio/video transmission with bidirectional audio/video. Individual soldiers can be commanded from the dispatch platform, and command orders can be issued in real time based on location information. Individual soldiers can actively call the platform for audio or video reporting.

1.2.4 Converged Communication Dispatch Function

The platform enables converged communication among all on-site terminals. The system implements conference convergence—systems with video capability connect via video, while those without connect via voice, allowing all members in the conference to speak and be heard. It supports video polling and video split-screen display.

1.2.5 Video Surveillance Function

Through the wireless video integrated platform, on-site HD cameras and HD displays can be connected to the platform, supporting efficient browsing and switching, enabling unified control and supervision of various resource information, and facilitating commander operations.

1.2.6 Member Dynamic Display

The call status, online status, and location status of all system members are presented in real time within the system, providing awareness of real-time member status.

1.2.7 Emergency Plans

The platform can generate multiple emergency plan procedures with one-click activation support. It provides multi-means sequential calling and SMS notification functions for contact personnel.

1.3 Backend Video Integrated Platform

1.3.1 Duty and On-Watch Function

Duty dispatch seats can implement icon-based group management of personnel. Each member corresponds to an icon displaying the person's name and extension number, with real-time terminal status indicated by different colors.

Duty dispatch seats can initiate one-click voice calls to personnel quickly through the contacts or member display interface, and can implement basic voice dispatch functions such as barge-in, forced release, and monitoring.

1.3.2 Video Dispatch Function

The command center video integrated platform can perform video retrieval, forwarding, and distribution for frontend LTE terminals, video surveillance systems, etc. The platform supports video convergence. Remote video points can be viewed on the PC video sharing client.

Video Features:

Ø Video Encoding

Supports MPEG4, H263, H263+, H264, and H265 encoding technologies.

Advanced bitrate control and bandwidth adaptation mechanisms effectively ensure smooth, high-quality video even under poor network conditions.

Ø Full Support for All Current Video Resolutions

From 176×144 to 1280*720, with support for high-definition video.

Supports layered encoding transmission control technology and Packet Loss Concealment (PLC) technology, ensuring continuous image display even under conditions of significant packet loss.

Ø Multiple Video Sources

Supports multiple video source inputs, allowing a single meeting site to connect multiple terminal video feeds and display them simultaneously during a conference.

Ø Video Round-Robin

Supports synchronized multi-channel video round-robin and local round-robin, with configurable number of round-robin video channels and interval time.

Ø Split-Screen Display

Supports split-screen display of video and data, providing multiple window layouts with manual adjustment or window auto-adaptation, enabling vivid layout effects such as multi-grid playback, full-screen enlargement, and multi-channel split-screen.

Provides multi-channel video layout within the video window, where the video layout can auto-adapt within the window, achieving layouts such as focus highlighting, full-screen enlargement, and multi-channel split-screen.

1.3.3 Map Dispatching Function

Supports multiple map engines, including: Baidu Online Map, Baidu Offline Map, Amap Online Map, ArcGIS Online Map, custom maps, etc.

Map dispatching supports the following functions:

Basic map functions: scale bar, zoom in, zoom out, pan, distance measurement, area measurement;

Map dispatching functions: terminal positioning display, single-person/multi-person real-time tracking, single-person/multi-person track playback, circle-selection intercom/conference/broadcast call, box-selection intercom/conference/broadcast call, point-selection call, single-selection call, member type filtering, group member centralized display, status filtering, electronic fence, and other functions.

1.3.4 Command Dispatching Function

The command center can send text messages to dispatched users via the PC client. Using this function, dispatchers can quickly issue operational commands, and terminal users can review them at any time. In environments with strong noise interference where voice communication is inconvenient, text command dispatching can serve as an excellent alternative dispatching method to voice.

The short message service aggregates short data information from various types of terminals, performing unified parsing, storage, forwarding, and push distribution, enabling short message interoperability between heterogeneous communication systems.

1.3.5 Voice Dispatching Function

The dispatch console can initiate voice dispatching to multiple parties such as individual terminals and group members. This includes comprehensive voice dispatching functions such as one-key direct call, voice conference, monitoring, call pickup, call hold, barge-in, forced release, transfer, and emergency call.

※ Complete Functions: Features practical functions including calls between dispatched users, multi-level user permissions, caller ID display, user status monitoring, digital recording and playback, teleconferencing, group call/group paging, broadcast, one-key calling, barge-in/forced release, monitoring, dispatch transfer/hold, and incoming call selection.

※ Status Monitoring: Displays the working status of each dispatched user and trunk line through indicator light color changes, and allows barge-in calls to users or forced line disconnection.

※ One-Key Calling: Phone numbers and names are stored for fast one-key speed dialing.

※ Flexible Dialing Methods: Directly press a user's one-key or stored one-key, and the phone automatically dials in hands-free mode; or go off-hook and press a user's one-key, stored number one-key, or dial digits.

※ Transfer: After an incoming call from internal or external lines is connected, if contact with another party is needed, the dispatch console can directly dial the required extension number or press the user's one-key.

※ Barge-In: When calling an extension that is busy, pressing the 'Barge-In' key and the extension's one-key directly inserts into the extension's active call for three-way conversation. After the three-way barge-in call, when the inserted extension hangs up, the other party can be transferred to another extension; when the dispatcher hangs up, the original call is restored.

※ Forced Release: When a user or trunk line is occupied for an extended period, the extension or trunk call is forcibly disconnected; the extension hears a busy tone and the trunk line is restored.

※ Teleconference: Press the 'Conference' key, then press user one-keys or stored one-keys one by one to convene a teleconference.

※ Group Call: Single-group or multi-group calling — fast, quick, and convenient; can call all users in a designated group, with users going off-hook to join the group call conference; can directly add designated users to the group call temporarily, or have designated users exit the group call immediately.

※ Broadcast: Group broadcast: when initiating a broadcast, a broadcast command can be sent to designated groups, or broadcast to all groups; extensions not in the broadcast group can also be temporarily added to the broadcast; roll-call broadcast: when initiating a broadcast, designated extensions can be added to the broadcast one by one; regular phones ring upon receiving the broadcast command and receive the broadcast after going off-hook, while dedicated phones or broadcast receivers automatically go off-hook in hands-free mode to receive the broadcast. The initiator ends the broadcast by hanging up.

※ Monitoring: Press the 'Monitor' key and then press the one-key of the internal user in conversation or the trunk key to listen to the conversation without the user's knowledge.

※ Ringer Off: If the dispatch console is in an active call and a new call comes in, the dispatch console can perform a ringer-off operation, meaning no ringing during the current call; after the call ends, the ringer-off is automatically released.

1.3.6 Multimedia Conference

A multimedia conference composed of various communication terminals (including individual soldier terminals, LTE terminals, video surveillance terminals, etc.), where the media server stitches multiple video sources from different origins into a single multi-grid composite image. Conference participants can be in mixed forms such as audio-only or audio-video, and members participating in voice-only mode do not display images. Members can be added or removed during the conference.

1.3.7 Dispatch Recording

Centrally stores all dispatch voice communications within the platform, and provides functions such as retrieval, playback, and download of recording information.

1.3.8 Dispatch Video Recording

This function works in conjunction with a media recording server to centrally store all dispatch voice communications, video communications, text messages, multimedia messages, etc. across the entire network, and provides functions such as retrieval, playback, and download of recording and video information.

1.3.9 Multi-Level Dispatching

Multi-level dispatching has a multi-layer structure in dispatch business logic. By configuration, the upper-level video integrated platform displays mobile terminals, surveillance cameras, and other members of lower-level video integrated platforms in its organization tree, and can dispatch members such as mobile terminals and surveillance cameras of lower-level emergency converged communication platforms. This enables the upper-level video integrated platform to perform business management over lower-level wireless video integrated platforms.

1.4 IDM Converged Dispatching System WEB Client

1.4.1 Software Main Interface

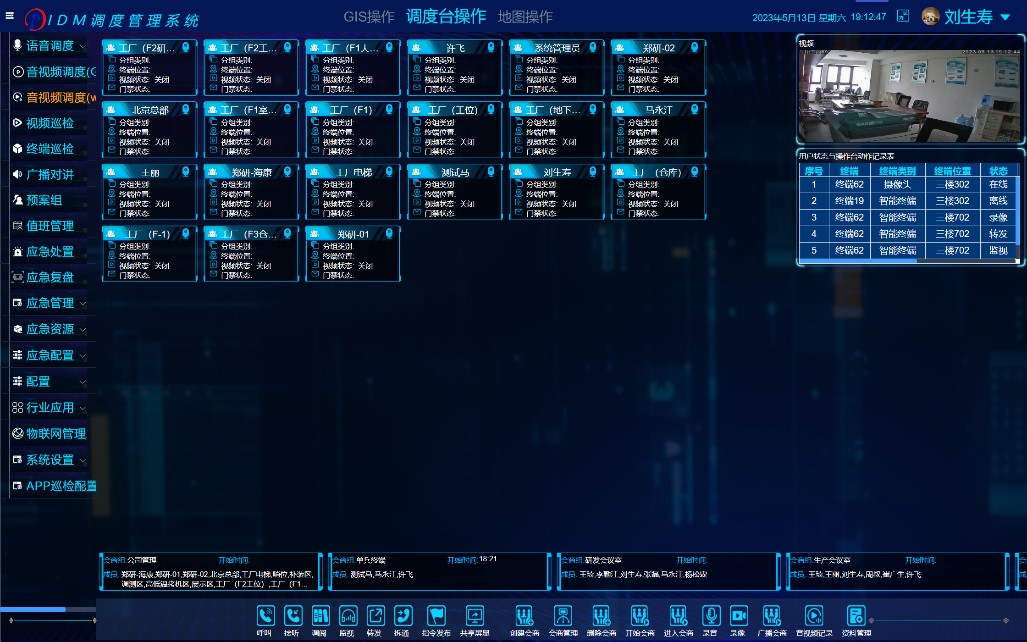

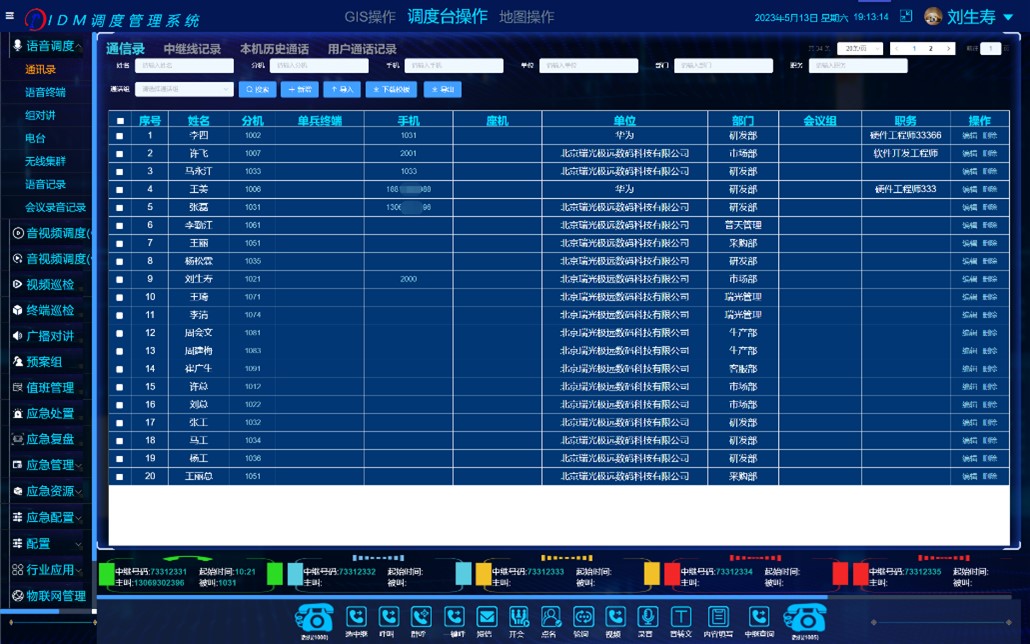

1.4.2 Voice Dispatching Interface

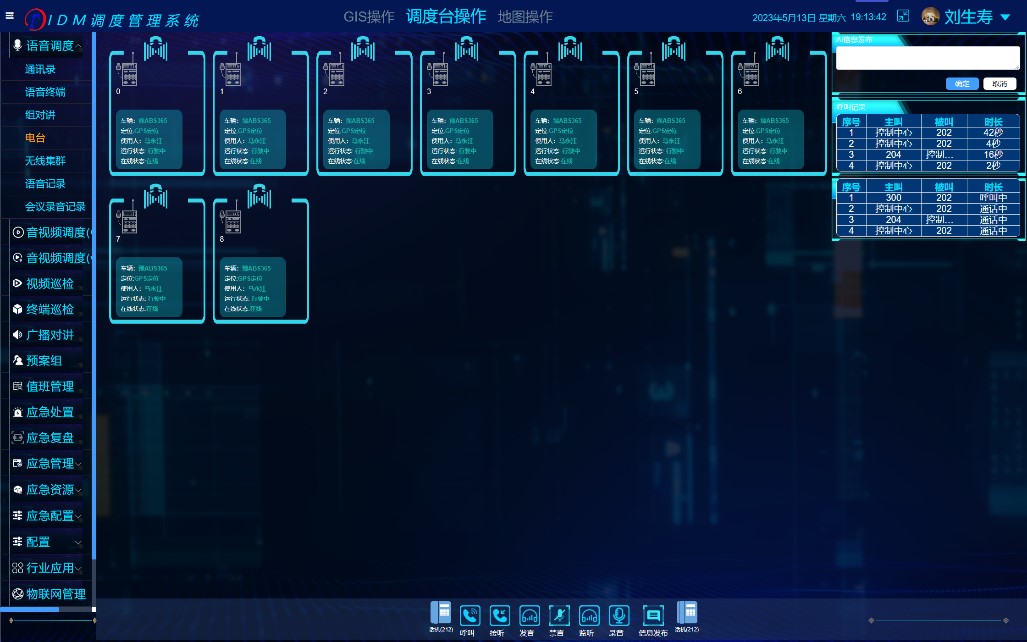

1.4.3 Radio Dispatching Interface

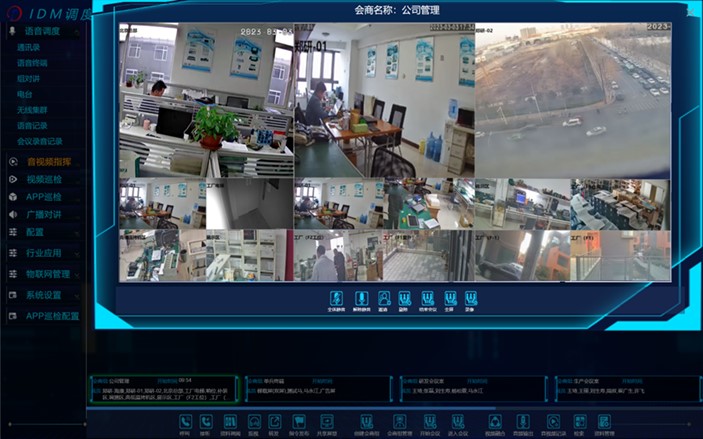

1.4.4 Audio-Video Conference Interface

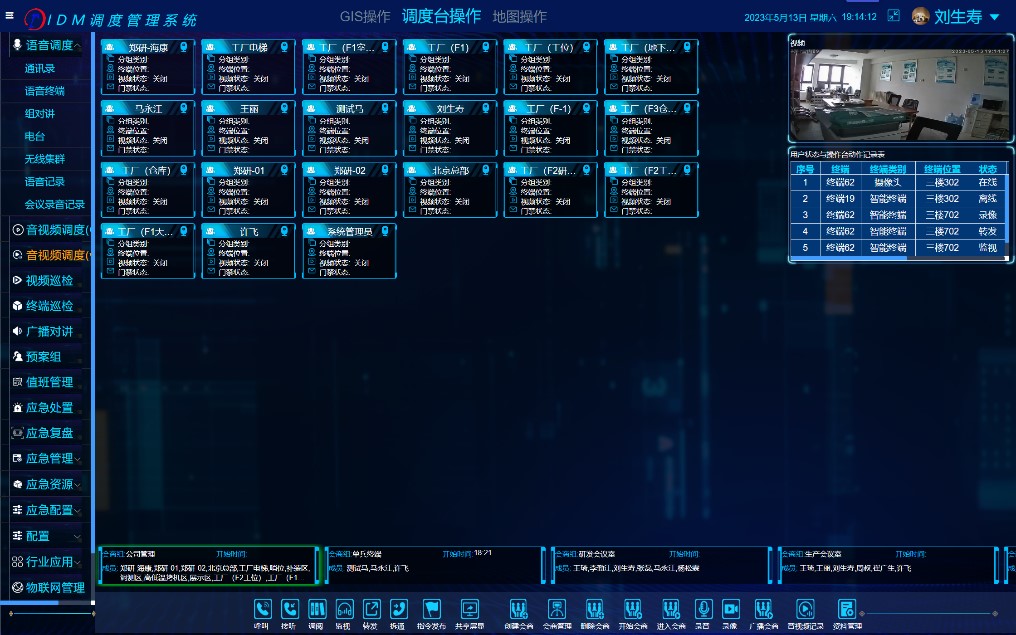

1.4.5 Video Surveillance Interface

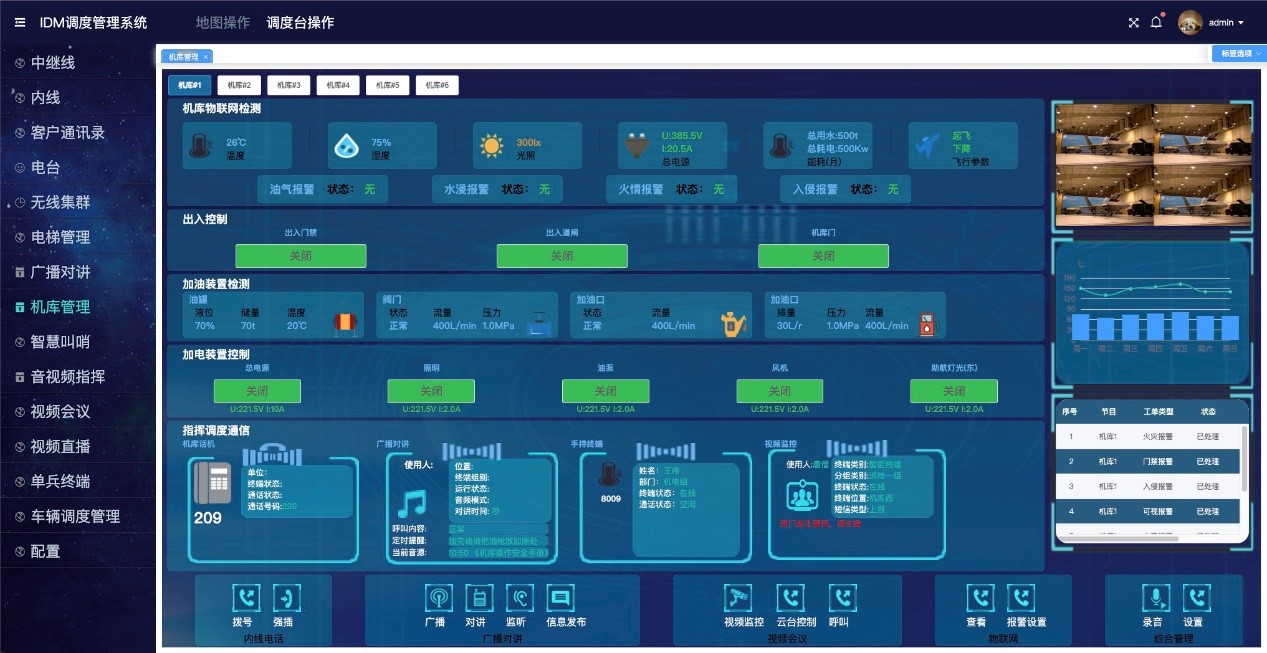

1.4.6 IoT Monitoring Interface

1.5 System Advantages

Ø Integrated Converged Dispatching Capability: The system is centered on IP multimedia communication switching, combined with converged communication desktop dispatching software and mobile clients, integrating voice, video, instant messaging, SMS, intercom, conferencing, and other multimedia communication capabilities into one system, building an integrated command dispatching system that converges voice, video, and data communications.

Ø Powerful Resource Convergence Capability: Supports protocols such as SIP, PSIP, H.323, RTSP, and E1, integrating existing audio, video, and data resources for access, enabling business interoperability between heterogeneous communication networks and comprehensive dispatching of resources. Voice systems include: PBX telephone systems, IP telephone systems, broadcast systems, voice conference systems, etc.; video systems include: video surveillance systems, LTE broadband systems, video conference systems, etc.; data systems include: instant messaging, GIS location, terminal status, etc.

Ø Efficient Mobile Command Capability: The converged communication mobile client APP can be installed on various mobile intelligent terminals such as individual soldier devices, LTE terminals, and mobile surveillance devices, enabling voice calls, video calls, image/video transmission back, positioning, track display, and other functions. The command center can quickly and comprehensively grasp on-site information, achieving efficient and accurate unified dispatching.

Ø Flexible Deployment and Collaborative Dispatching: The system supports cloud virtual deployment, as well as hierarchical and distributed deployment, facilitating multi-level, multi-person collaborative dispatching modes for efficient emergency command coordination.

Ø Secure and Highly Reliable Design: The intelligent converged communication platform supports redundant dual-machine hot-standby design, with a comprehensive security protection system.

Ø Standardized Development Interfaces: The communication dispatching platform provides standard unified middleware for upper-layer business application systems. Without needing to consider the underlying architecture, various business support functions such as audio/video calls, conference operations, SMS/fax, video operations, location positioning, alarm reception, and data monitoring can be implemented by calling standardized interfaces, reducing development costs and shortening development cycles.

Ø ★ IoT Service Access: Supports IoT service modules, capable of accessing outdoor environmental parameter monitoring data, personnel vital signs monitoring data, and vehicle status monitoring data, displaying them in real time on the converged command software platform, with data analysis and simulation.

Ø ★ 4K Input/Output and Video Stitching: Our equipment's video input/output supports up to 4K resolution, supporting multiple interface types such as HDMI, DVI, and SDI. Different functional modules can be selected according to actual needs, with support for video stitching output.

Ø ★ Converged Command Dispatching Software Platform: Our portable converged command dispatching software platform integrates pre-plans, large-screen stitching control, video command, video surveillance, PTZ control, programmable central control, audio adjustment, live broadcast/recording, pause and other controls, system status, system configuration, and other functions into one.

Ø ★ Video Command Dispatching Function: Supports H.323/SIP/RTSP/RTMP protocols, with open and compatible H.323/SIP protocols, enabling one-key interaction between devices, between devices and handheld terminals, and between devices and mainstream video terminals and MCUs on the market.

Ø ★ Multi-Protocol Support: Supports protocols including TCP/UDP/RTSP/RTP/RTMP/ONVIF/H.323/SIP/HTTP, etc.

Ø ★ Multi-Device Cascading Support: In specific application scenarios where a single device cannot meet requirements, multiple devices can be cascaded to meet large-capacity dispatching needs.

Ø ★ Individual Soldier Video Transmission: Equipped with individual soldier video transmission capability, along with two-way voice, enabling visual command of individual soldiers from the dispatching platform.

Ø ★ Converged Communication Dispatching: Services provided include: voice dispatching service, video dispatching service, video surveillance service, trunked intercom service, voice/video conference service, fax service, voice/file broadcast service, message command dispatching service, pre-plan dispatching service, GIS dispatching service, blacklist/whitelist, call record management, multimedia record management, user resource management, decoder management, video service management, trunk routing management, terminal device online upgrade, unified terminal parameter management, and system permission management.

Ø ★ Diverse Transmission Methods: The original system primarily uses broadband ad-hoc wireless communication. Our portable equipment can be integrated with SDH optical transmission modules, Ethernet optical switching modules, and E1 integrated access modules, providing multiple transmission methods that can be flexibly used according to the actual operating environment.

Ø ★ Transmission Line Redundancy Protection: Our portable equipment supports redundant protection backup across multiple lines including SDH optical transmission lines, Ethernet optical switching, E1 lines, and wireless ad-hoc networks. When line protection backup is enabled, if any transmission line is interrupted, services automatically switch to other transmission lines.

1.6 Broadband Converged Communication System Equipment

No.

Name

Model

Configuration

Parameter Value

1

Converged Communication Dispatch Server

IDM MCC

Chassis

19-inch7U chassis, supporting no fewer than12 service slots and2 mutually redundant power supply slots.

SIPServer Board

CPU: Quad-core, eight threads 3.5GHz Memory:8G DDR3; Storage:SSD 1TB; Network: Gigabit Ethernet port.

Dispatch Service Card	CPU: Quad-core, eight-thread 3.5GHz Memory: 8G DDR3; Storage: SSD 1TB; Network: Gigabit Ethernet port.
Analog Trunk Card	Provides 30 FXO loop trunk interfaces.

Telephone Subscriber Card

Provides 30 channels of FXS telephone subscriber interfaces.

Converged Dispatch Server Software System

Network management and alarm: supports WEB-based network management with Chinese language support. Monitors the status of various modules. Supports backup and restoration of number data, dialing plans, and trunk routing; supports network configuration or local serial port configuration. Maximum system capacity: supports up to 5000 registered dispatch users, with up to 1000 concurrent sessions. System configuration for this deployment: 100 concurrent voice users, 100 licensed dispatch users, 30 licensed conference users, and 30 licensed recording channels. System expansion capability: supports insertion of a trunked radio access card to interface with future steel enterprise trunked intercom systems. Protocol support: SIP2.0/TFTP/FTP/SNMP/TELNET/HTTP/IEEE802.1Q/IEEE802.1X. Convergence capability: supports converged voice dispatch, basic push-to-talk intercom, conference calling, video dispatch, video conferencing, and other dispatch functions; supports GIS dispatch functions: click-to-call, click-to-view video, area/lasso selection calling, and movement track recording/query, etc.

2

SBCSession Border Controller

IDM SE1800

1.Function: Enables firewall orNAT traversal, enabling interconnection of voice streams betweenIP networks on both sides of the firewall, with media proxy support. 2.Operating System: Uses theLinux operating system as the platform for invoking other module programs. 3.User Capacity: Supports5000 users per unit. 4.Network Interface: Gigabit Ethernet port. 5.Protocol Support:SIP protocol. 6.Main Functions: Handles forwarding of signaling and media streams. Responsible for listening on ports, processing and forwarding signaling sent from terminals and the softswitch, and controlling the operation of the voice stream forwarding module. Responsible for periodic database maintenance and recording system configuration status into the database.

3

Video Conferencing Gateway

IDM MT2000

1. Host chassis: suitable for 19-inch cabinets, supports dual power supplies; 2. Service functions: integrated MCU functionality, providing registration services, traversal services, conference management services, device management services, enterprise address book services, SIP trunk services, WebRTC services, GK and H.460 services, and gateway services; supports mixed-rate, mixed-resolution, and mixed-frame-rate terminals joining conferences, supports multiple layout modes: equal-division mode, 1+N mode; supports cascading and conference management functions. Supports RTMP live streaming push, supports RTSP live streaming pull. 3. Access capability: supports no fewer than 100 video conferencing terminal connections, no fewer than 10 concurrent 1080P sessions, with full transcoding and full decoding.

4

Surveillance Convergence Gateway

IDM IV2000

1. Main chassis: suitable for 19-inch racks, supports dual power supplies; 2. Service functions: integrated MCU functionality, providing registration services, traversal services, conference management services, device management services, enterprise address book services, SIP trunk services, WebRTC services, and GK support with dual power supplies; 3. Supports the national standard GB28181 protocol and the ONVIF protocol; when interconnecting with a peer platform via the GB28181 protocol, the peer platform must support the GB28181 protocol and have the GB28181 protocol module license. Supports access to video surveillance platforms via GB28181, enabling real-time video viewing, PTZ control, historical video playback, directory synchronization, and other functions; supports access to multiple surveillance platforms, and supports direct access to front-end devices such as IPCs, NVRs, DVRs, and encoders via the ONVIF protocol or the GB28181 protocol. 4. Access capability: provides no less than 2000 channels of surveillance access licenses;

5

Recording and Video Server

IDM AR2000

The recording and video server provides high-quality audio recording and video recording services for the audio/video dispatch terminals in the converged communication platform, and features recording file management functions including search, download, playback, and deletion. Call recording management:Supports search, deletion, download, and playback preview of dispatch call recordings. Video recording:Records video from video dispatch and video conferencing sessions; recordings can be played back using various media players. Conference recording: Supports download, search, deletion, and playback preview of dispatch conference recordings. Recording file management: Supports search, save-as, and download operations on recording files. Video file management: Supports download, deletion, and search operations on recorded video files.

6

Touchscreen Dispatch Console

IDM MCC-T

Dispatch Console

Display: 21.5-inch capacitive wide-screen touch LCD, 16:9; CPU: I5 processor; Memory: 4G RAM; Storage: 128G SSD; Interfaces: 4*USB, 2*Gigabit Ethernet RJ45 ports, 1*AUDIO, 1*RS232, supporting dual graphics output via VGA and HDMI. Telephones: 2 IP dispatch handsets.

Dispatch Console Client

①. Call Recording Management: Recordings of dispatch calls can be queried by calling/called number, start/end time, and duration. Records can be deleted locally or on the recording server, and can also be downloaded and played back. Recordings of dispatch conference sessions can be queried by conference name, start/end time, and duration. Recording records can be deleted locally or on the recording server, and can also be downloaded and played back. Recording files are in WAV format and can be played using a variety of media players. ②. Group Call: Multiple users can be grouped into a single group for calling. Only one user can speak at a time. ③. Broadcast: The dispatch console can initiate a broadcast to a single group or multiple groups, and group members can listen to the voice from the dispatch console. ④. Barge-in: The dispatcher can barge into an ongoing individual call/group call conversation. ⑤. Forced Disconnect: The dispatcher can forcibly terminate an ongoing individual call/group call conversation. ⑥. Real-time Status Display: The system can monitor the status information of all objects in real time. ⑦. Monitoring: Real-time monitoring of all voice communications of users within the system, without the monitored user's knowledge. ⑧. Short Message Text Dispatch: The dispatch console can send instant messages (including text, files, etc.) to mobile phones within the system. Additionally, dispatchers can edit SMS templates for unified reply and distribution. ⑨. Roll Call: Call records can be queried on the console by conditions to obtain roll call results. If the called phone answers normally by going off-hook, the roll call is successful; if the called phone does not answer or the call fails, the roll call is unsuccessful. ⑩. Polling: The console supports selecting multiple dispatch users for polling calls. The selected users ring sequentially in the order selected. After the previous number answers, completes the call, and hangs up, the next number is called, until all calls are completed. The polling process can be manually stopped at the console. ⑪. System Management: Implements functions such as dispatch system parameter configuration, user management, terminal management, data import/export, as well as system software upgrades and updates. ⑫. Emergency Plan Management: Different levels of call groups can be configured according to the emergency event level.

7

Single-Soldier APP (Android)

The Single-Soldier APP is installed on Android-based terminals; It provides audio/video intercom, voice calls, message and command transmission/reception, GIS positioning, video viewing, video retrieval, audio/video conferencing, and video upload functions. It supports point-to-point audio/video calls and point-to-multipoint conference group calls; It can connect to other single-soldier terminals, network cameras, window images on computer monitors, and various audio intercom/broadcast terminals. The audio/video interface provides a text interaction display window for command notifications; It can switch to instant messaging at any time for sending and receiving location, voice, text, numerical data, images, and short videos.

8

Intelligent Individual Soldier Server

Hardware specifications:≥2×E5 processors;≥32G memory;≥2×3.5"1T enterprise-grade hard drives, SATA interface,RAID 0.1.10.5; network:≥2 Gigabit Ethernet ports; power supply: AC power

9

Core Network Equipment

The core network equipment adopts a highly reliable, high-capacity, high-speed, and highly integrated platform, serving as the key control point for industry customers to advance the convergence of network, data, voice, and business production operations, helping them achieve digitalization, informatization, and intelligent transformation. The equipment can fulfill the functions of core network equipment to meet the configuration and application requirements of private networks in medium-to-large network scenarios. It offers flexible configuration and supports a series of configuration options, delivering higher cost-effectiveness in medium-to-large scale networking scenarios.

10

Base Station Equipment

Main functions include: Providing the physical interface for connection to the core network and processing the associatedIP transport protocol stack. Completing uplink and downlink baseband signal processing. Centrally managing the entire base station system, including operation, maintenance, and signaling processing. Providing the maintenance channel for connection to the (centralized operation and maintenance system). Providing clock interfaces, alarm monitoring interfaces, andUSB interfaces for clock synchronization, environmental monitoring, andUSB debugging, respectively.
