DID LCD Video Wall Display System

**System Design Overview
Preface
**With the rapid development of automation and information technology, monitoring centers have increasingly higher requirements for information display. As a centralized information display and communication platform, the large-screen display system can centrally display computer graphics, text information, and video signals from various monitoring systems, playing an important role in real-time dispatch, consultation, decision-making, and information feedback.
To meet the requirements for centralized information display in the monitoring center, a large-screen display system needs to be established, with the following requirements:

1. High reliability, high security, flexible operation, and easy integration
   The system should adopt advanced technologies and system architecture to improve reliability and security and reduce the impact of failures; unified control and management software should be used for flexible operation.
2. Clear and stable image display
   The image display should be fine and clear, with high screen brightness, uniform display, true color reproduction, minimal image distortion, high display stability, and long service life, meeting the requirements for 7×24-hour continuous display.
3. Capability to access various display signals
   It should be able to display computer image signals from mainstream operating systems such as Windows, UNIX, and Linux, as well as various video signals including PAL/NTSC/1080p/1080i/720p, and RGB/HV, DVI signals.
4. Unified display and functional zone display
   The entire display system can serve as a unified display platform for full-screen display of various signals, such as welcome messages. At the same time, it can be divided into multiple functional zones, each displaying various signals according to functional requirements.
5. High-resolution graphics display
   The entire display system should provide a high-resolution unified display platform capable of displaying high-resolution graphics.
   Based on the above requirements and the customer's own needs, an LCD video wall large-screen display system solution is provided to the customer. This solution integrates the simplest video wall technology, multi-screen image processing technology, and signal switching technology into one, forming a large-screen display system with high brightness, high definition, highly intelligent control, and advanced operation methods.
   Through this LCD large-screen display system, comprehensive display of system computer image and video image information can be achieved, forming a fully functional, technologically advanced information publishing, display, and management control system. The entire system can be connected to computer systems, video surveillance systems, and other independent computer workstations to achieve comprehensive display of these computer graphics and video image information.

**2. System Usability
**Based on the system scale and application requirements proposed by the customer for the large-screen display system, we will select appropriate products in the system to meet the application needs of the large-screen display system. Using the built-in image processing system of the LCD panel, combined with signal switching, any signal can be selected for display on any unit area; image stitching of the large-screen display system can achieve full-screen or single-screen display.

3. System Advancement

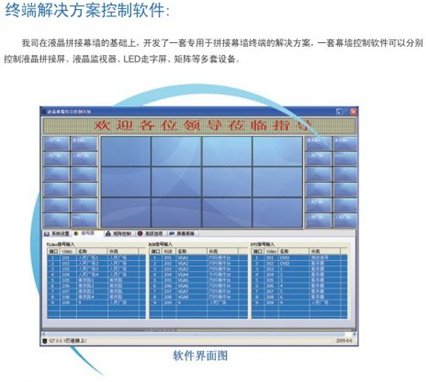

As the display unit of the large-screen display system, the DID LCD panel can directly input RGB and Video signals. Combined with signal switching, it can also support simultaneous input of multiple signals and allow any one signal to be selected for display on any single screen of the large screen. The RS232 control software not only has powerful display control functions and a simple, intuitive operation interface, but also features a unique automatic image stitching correction function.
To meet the application characteristics of various large display centers, the adopted large-screen display system should not only have excellent display characteristics such as high brightness, contrast ratio, high resolution, wide viewing angle, brightness and color uniformity, but also be capable of long-term continuous, safe, and stable operation. At the same time, to reduce the waste of funds and time on routine maintenance and repairs, the display system should meet the requirements of "easy maintenance and no consumables."
For the LCD video wall large-screen display system from our company, the display section uses "narrow-bezel" LCD displays manufactured with Samsung's proprietary technology and advanced processes from South Korea. The 1cm bezels are spliced together to form a 2cm LCD large screen in the middle, delivering excellent display quality. In addition, the fully digital, highly integrated circuit design ensures system stability.
Our LCD products have passed CE and CCC certifications. The average trouble-free time of the products exceeds 50,000 hours, and the service life of core components exceeds 50,000 hours, providing extremely high reliability.

4. System Reliability
The system can maximize satisfaction of actual work requirements, taking user business management as the primary consideration. On the basis of meeting functional requirements, it should be convenient to operate, simple to maintain, and easy to manage.
The entire system can work continuously 24 hours a day, 365 days a year as required. Therefore, the entire large-screen display system must have high reliability and high stability to ensure normal continuous operation year-round. Due to the adoption of advanced LCD display technology, continuous 24-hour long-term operation of the LCD video wall will not cause any damage to the display units or affect the display effect. From the completion of installation and commissioning to several years of use, the same display effect can be maintained, achieving the same clarity, resolution, and display accuracy.
5. System Economy
A reasonable performance-to-price ratio is an important consideration in system design. Therefore, the selected equipment should take economy into account while balancing good performance. In addition to the overall system cost, the long-term operating cost of the system should also be considered.
According to industry experience, the annual cost of replacing lamps for a DLP projection video wall (taking ten screens as an example) is as high as RMB 70,000–80,000. Therefore, choosing our LCD video wall is a wise choice, as it not only offers the advantages of LCD but also comes with a comprehensive warranty system, stable quality, and excellent service from a well-known product.
In summary, the overall design principle is that the system should adopt an advanced, mature, reliable, manageable, high-performance, flexibly expandable, and open-standard architecture. It should also take into account the medium- and long-term development plans of the system, adapting to the future development of multimedia applications in terms of system structure, system applications, system management, and system performance, thereby maximizing the protection of the user's investment.

System Composition

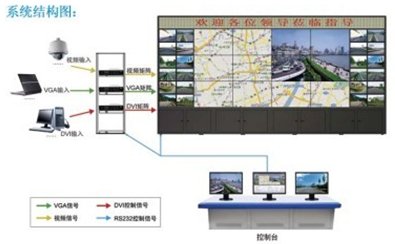

The large-screen display system provided in this solution mainly consists of the following parts:
**1. LCD Display Module
**PD46N3 46-inch industrial HD LCD video wall unit quantity: 9 PCS; arrangement: 3 rows × 3 columns.
2. Installation method: wall-mount bracket installation
3. Control software required: Yes
**2. System Functions:
**The entire LCD large-screen display system consists of a 46-inch industrial HD LCD video wall matrix, etc. This large-screen display system can display various types of signals such as Video\VGA\RGB/HV\DVI, and supports SD and HD signals including 720P, 1080I, and 1080P.

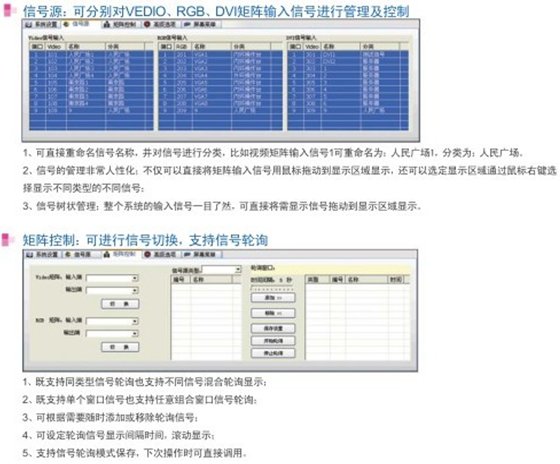

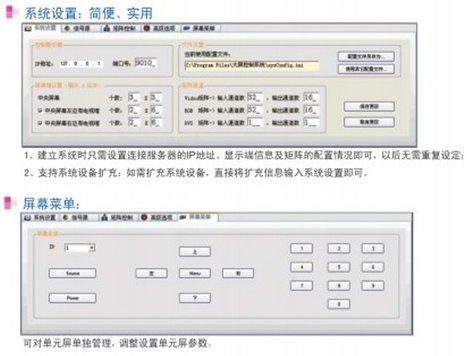

Through the control software, all display signals and display modes can be flexibly controlled. Combined with the matrix, any signal can be displayed on any combination of screens with flexible switching. Different display areas can be set according to user requirements, and various signals can be designated for display within the display areas.

**System Display Modes
**The LCD large-screen display system can complete various display modes to display various input signals from the user. Specific modes can be customized according to user needs.

1. Full-screen display, high-resolution application
   The video wall can form an ultra-high-resolution unified display platform, capable of displaying large, complete, ultra-high-resolution graphics across the entire wall.
2. Functional zone display mode
   The entire display system can also be divided into corresponding display areas according to the division of work in the monitoring and dispatch center system. Generally, images from each system are displayed only in their own display zone, ensuring independence between systems.
3. Multi-channel video signal display
   Supports full-system video input signals. Various video signal sources such as video surveillance information, cameras, video recorders, DVD players, and color document cameras can all be connected to the LCD display units.
4. RGB signal display
   Independent RGB signals can be displayed quickly and in real time.
5. Mixed display of various signals
   Video signals, RGB signals, DVI signals, etc. can all be displayed simultaneously on the large screen in their respective modes without interference. Alternatively, the large screen can be divided into zones for display according to application system needs, with zone-based control.
