Coal Mine Emergency Rescue Broadband Converged Communication System
Visual Elements: Underground coal mine roadway schematic + three core equipment icons + "MT/T 1129-2011 Compliance" badge
Page 2: Table of Contents
- Industry Pain Points and System Positioning (including compliance objectives)
- System Architecture: MCC6000/RG1100/MCC570 Composition and Standard Alignment
- Core Equipment Analysis (Full-Dimension Compliance Verification)
- System Core Features (Anchored to Standard Requirements)
- Compliance and Application Value Summary
Page 3: Industry Pain Points and System Positioning
1. Core Pain Points in Coal Mine Emergency Rescue (Aligned with Standard Gaps)
- "Three Disruptions" Dilemma: Traditional systems struggle to meet MT/T 1129-2011 Clause 5.6.1 "Base Station to Surface ≥10km" transmission requirements; communication is interrupted after network disconnection
- Insufficient Battery Life and Capacity: Existing mobile stations offer battery life ≤4h (failing to meet Clause 5.6.7 "≥11h including 2h calls"), and support ≤10 connected terminals (below the Clause 5.6.2 "≥18 terminals" requirement)
- Lack of Explosion-proof and Immunity Protection: Some devices are not intrinsically safe (non-compliant with Clause 5.10), and electromagnetic immunity has not passed GB/T 17626.3~5 testing
2. System Positioning and Compliance Objectives
- Core Positioning: Based on MT/T 1129-2011, build a "Surface - Underground - Individual Soldier" three-tier compliant system
- Compliance Objectives:
✅ Transmission distance, battery life, and capacity fully meet Clause 5.6 technical specifications
✅ 100% intrinsically safe underground equipment (compliant with GB 3836.1~4, corresponding to Clause 5.10)
✅ Immunity and reliability meet Clause 5.8 and 5.9 requirements (MTBF≥800h)
Page 4: System Architecture — Three-Device Composition and Standard Alignment
1. Architecture Logic (Fully Matching MT/T 1129-2011 Clause 5.4 System Composition)
| Equipment Tier | Equipment Model | Corresponding Standard Component | Core Parameters (Anchored to Standard Clauses) |
|---|---|---|---|
| Surface Command Tier | MCC6000 | Surface Base Communication Terminal | Power adapter 380V/220V±10% (5.3), MTBF≥800h (5.9) |
| Underground Relay Tier | RG1100 | Base Station | Transmission to MCC6000 ≥10km (5.6.1), battery life ≥11h (5.6.8) |
| Underground Individual Soldier Tier | MCC570 | Mobile Station | Distance to RG1100 ≥500m (5.6.1), battery life ≥11h (including 2h calls) (5.6.7) |
2. Key Collaborative Scenarios (Compliance Verification)
- Network Disruption Response: MCC570 supports off-network direct calling (compliant with 5.5.7), RG1100 operates independently off-network (compliant with 5.5.6), meeting the "communication without base station" requirement
- Transmission Redundancy: RG1100 supports fiber optic (2.5G) and field wire (10km), both meeting Clause 5.6.1 "Base Station to Surface ≥10km" standard
- Capacity Adaptation: System supports ≥18 MCC570 connections, meeting Clause 5.6.2 "Mobile station quantity ≥18" requirement

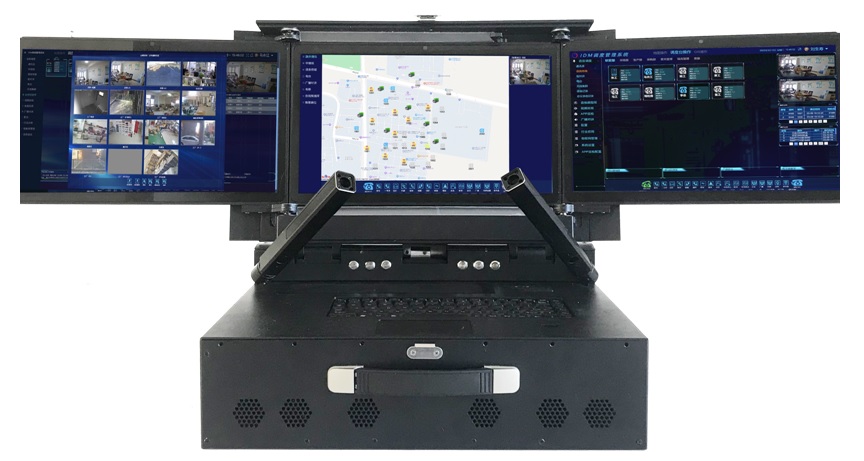

Page 5: Core Equipment ① — MCC6000 Surface Base Communication Terminal (Fully Compliant)
1. Core Configuration (Item-by-Item Alignment with MT/T 1129-2011)
- Power Supply and Environment:
- Surface power adaptation: 380V/220V (deviation -10%~+10%), 50Hz (±5%), compliant with Clause 5.3
- Operating environment: 15℃~30℃ (humidity 40%~70%), matching Clause 5.2.1 equipment room environment standard
- Communication and Reliability:
- Multiple links: fiber optic (2.5G), field wire (10km), meeting Clause 5.6.1 "Base Station to Surface ≥10km" transmission requirement
- Reliability: MTBF≥800h, passing GB/T 5080.7 timed censoring test (6.10)
- Immunity Performance:
Passes GB/T 17626.3~5 (Level 1) RF/pulse burst/surge immunity tests, compliant with Clause 5.8
2. Core Rescue Functions (Covering Full Clause 5.5 Functions)
- Emergency Call/All Call: Supports initiating emergency calls (5.5.4) and all calls (5.5.5), surface commands reach underground terminals within 10s
- Data Storage: Local archiving of images/audio/data, compliant with Clause 5.5.11 storage requirements
- Network Communication: Connects to coal mine intranet for remote dispatch (5.5.12)
Page 6: Core Equipment ② — RG1100 Underground Base Station (Intrinsically Safe + Relay Compliance)
1. Core Configuration (Anchored to MT/T 1129-2011 Clauses 5.10/5.6)
- Explosion-proof and Protection:
- Intrinsically safe type (Ex ib I), compliant with GB 3836.1~4, passing Clause 6.11 explosion-proof performance test (5.10)
- Dimensions 250×250×50mm, adapted to underground 0℃~40℃ (humidity ≤95%) environment (5.2.2)
- Relay and Battery Life:
| Relay Method | Parameters (Compliant Clauses) |
|---|---|
| Field Wire Bus | 2Mbps within 10km, meeting Clause 5.6.1 "≥10km" |
| WIFI HALOW (900M) | 10Mbps within 1.2km, MCC570 connection ≥500m (5.6.1) |
| Fiber Optic Chain Network | 2 Gigabit optical ports, supporting chain network expansion |
- Battery life: intrinsically safe battery ≥11h, compliant with Clause 5.6.8 "Base station battery ≥11h" requirement
2. Core Functions (Meeting Clauses 5.5.6/5.5.9)
- Off-network Operation: After disconnection from surface link, still supports calls with MCC570 within coverage (5.5.6)
- Environmental Monitoring: Connects methane/oxygen detectors via LoRa gateway, with real-time data transmission (5.5.9)
Page 7: Core Equipment ③ — MCC570 Mobile Station (Full Compliance)
1. Core Configuration (100% Compliant with MT/T 1129-2011 Clauses 5.6/5.10)
- Explosion-proof and Battery Life:
- Intrinsically safe type (Ex ib I), intrinsically safe input/output signals (5.10), passing GB 3836.4 testing
- Battery: 3.7V 8000mAh, continuous operation ≥11h (including 2h calls), compliant with Clause 5.6.7
- Communication and Capacity:
- Transmission: to RG1100 ≥500m, between mobile stations ≥500m (5.6.1 "recommended ≥500m")
- Access: system supports ≥18 MCC570 simultaneous registrations, meeting Clause 5.6.2 capacity requirement
- Voice Quality:
Tested with GB/T 16532 speech material, subjective evaluation ≥Grade 3 (5.6.3), no obvious distortion
2. Core Functions (Covering Clauses 5.5.7/5.5.10)
- Off-network Calling: Direct calling between MCC570 units during base station failure (5.5.7)
- Group Call: Supports group calling by rescue crew, meeting Clause 5.5.10 "group call recommended" requirement
Page 8: System Core Features (Anchored to All MT/T 1129-2011 Requirements)
1. Full-Dimension Compliance (Core Differentiating Advantage)
- Technical Specification Compliance: Transmission distance, battery life, capacity, and voice quality fully meet Clause 5.6 requirements, with zero non-compliance
- Explosion-proof and Immunity Compliance: 100% intrinsically safe underground equipment, immunity passing GB/T 17626.3~5 Level 1 tests (5.8)
- Inspection Process Compliance: Factory inspection covers Clause 5.5 functions and Clause 5.6 specifications (7.2); type inspection every 3 years (7.3)
2. Enhanced Field Adaptability (Extended Based on Standard)
- Stable Operation: 7-day continuous power-on with no core function degradation (5.7 operational stability), adapted for prolonged coal mine rescue operations
- Flexible Expansion: Supports repeater and lightning arrester expansion (5.4 system composition), handling complex tunnel environments
- Data Closed Loop: Image/environmental data storage ≥30 days, meeting Clause 5.5.11 "storage function" and post-incident review requirements
Page 9: Compliance and Application Value Summary
1. Compliance Summary (Full Clause Coverage)
| Standard Section | Compliance Points | System Implementation |
|---|---|---|
| 5.4 System Composition | Mobile station + base station + surface terminal + transmission medium | 100% match, including repeater/lightning arrester expansion |
| 5.6 Technical Specifications | Transmission/battery life/capacity/voice quality | Full compliance, key parameters exceeding "recommended" requirements |
| 5.8~5.10 Immunity/Reliability/Explosion-proof | Level 1 immunity, MTBF≥800h, intrinsically safe type | Passed third-party testing, explosion-proof certificate obtained |
| 7 Inspection Rules | Factory/type inspection procedures | Standardized inspection system established, reports archived |
2. Application Value
- Safety Assurance: Compliant design mitigates the risk of gas explosion caused by non-intrinsically safe equipment; immunity ensures uninterrupted communication in explosive environments
- Efficiency Improvement: 10km field wire + 500m mobile station coverage, expanding rescue range 3x compared to traditional systems; 18 terminal connections support multi-crew coordination
- Long-term Adaptability: Standard type inspection synchronized every 3 years, ensuring the system continuously meets coal mine industry access requirements
