The IDM MSTP8000 is an STM-16/STM-64 MSTP multi-service optical transmission device that fully considers the diversity of network services and changes in network architecture. It inherits Raytrans' technical advantages and experience in the SDH/MSTP field and endows SDH equipment with new technical connotations. The IDM MSTP8000 integrates ADM, DXC, Ethernet switch, and PCM functions into one unit, providing high-capacity, long-distance service transmission. It can be applied to the construction and expansion of various transmission backbones as well as high-capacity metropolitan service scheduling, meeting bandwidth requirements across different fields and levels, making it an ideal device for building broadband transport networks.
I. Product Features
)Superior Scalability: As a 2.5G system, the IDM MSTP8000 MSTP optical transmission device can be smoothly upgraded to a 10G system, while providing more powerful 64K/2M/155M/622M access capabilities as well as GE/FE data service access capabilities.
)Powerful Timeslot Cross-connect Capability: The IDM MSTP8000 MSTP optical transmission device features large-capacity high-order and low-order scheduling capabilities, providing up to 160G of high-order cross-connect capacity and 20G of low-order cross-connect capacity. As a 10G system, the device can support up to 4 10G optical directions; as a 2.5G system, it can support up to 16 2.5G optical directions.
)Powerful Multi-service Access, Aggregation, and Scheduling Capability: The device is equipped with abundant service slots, supporting up to 14 service slots, fully meeting the requirements of complex networking. The device supports high-density 10G, 2.5G, 622M, 155M, GE, FE, and PCM service boards, reaching industry-leading levels. A single device supports up to 420 E1, 300 channels of 64K PCM services, and 64 155M optical directions.
)High Reliability with Multiple Means to Ensure Service Security: Supports dual buses, 1+1 hot standby for boards, 1:N protection for tributary boards, power protection, etc.; fully supports all protection schemes recommended by ITU-T.
)Efficient Data Service Processing Capability: The IDM MSTP8000 MSTP optical transmission device provides various data interfaces on the basis of traditional SDH equipment, such as EOS, PCM, etc.
)Reasonable Design for Easy Operation and Maintenance: Supports mixed insertion of boards, pluggable optical modules (SFP modules, LC connectors), ALS function, online optical power detection on optical ports for rapid fault location, high device integration to reduce floor space costs, and low power consumption to reduce electricity costs.
II. Customer Experience Value
)Flexible Networking and Scheduling Functions to Enhance Network Profitability and Reduce CAPEX: Flexible multi-service access functions provide highly integrated service interface boards, simultaneously accessing a large number of PDH, SDH, and data services to meet high-capacity service access requirements.
)Superior Scalability to Protect Investment and Reduce OPEX: Continuous smooth evolution and expansion allow users to achieve the effect of building a new backbone layer simply by adding or replacing boards, greatly reducing secondary construction costs; supports expansion shelves to provide support for a large number of 2M/155M/622M services, extending traditional scheduling layer equipment into comprehensive equipment with service termination capabilities.
)Flexible Design for Convenient Network Planning and Optimization: Supports mixed insertion of boards, making service configuration, maintenance, and network planning and optimization very convenient.
)Wide Market Application with High Technical Maturity and Reliability: With its mature technology and superior performance, the IDM MSTP8000 MSTP optical transmission device has been widely applied in the networks of major domestic and international operators and private network customers.
III. System Parameters
Maximum Rate | STM-64 |
Cross-connect Capability | High-order:160G; Low-order:20G |
Service Interfaces |
STM-64, STM-16, STM-4, STM-1(O), STM-1(E), E1, FE, GE, 64K services (including FXO/FXS, 2/4-wire EM, V.24, V.35, RS485, magneto telephone, etc.) |
Service Slots | 14 |
Mechanical Dimensions | 19-inch7U standard rack-mount equipment. |
Equipment-Level Protection | Dual-bus design, 1+1 hot standby for critical boards, 1:N protection for tributary boards, dual power distribution system, and distributed per-board power supply. |
Network-Level Protection | MSP 1+1/1:1. |
Typical Power Consumption | Power consumption<200W. |
Maintenance Operations | Optical transmission interfaces are front-facing, service interfaces are rear-facing; front installation and front maintenance are supported. |
Power Supply | Nominal voltage:-48VDC Voltage fluctuation range:-57VDC ~ -40VDC |
Environmental Requirements | Temperature:0℃~+45℃ Relative humidity:5%~90% |
Electromagnetic Compatibility | Electromagnetic interference complies with CISPR 22 Class A standards; anti-interference performance complies with the IEC1000-4 series standards. |

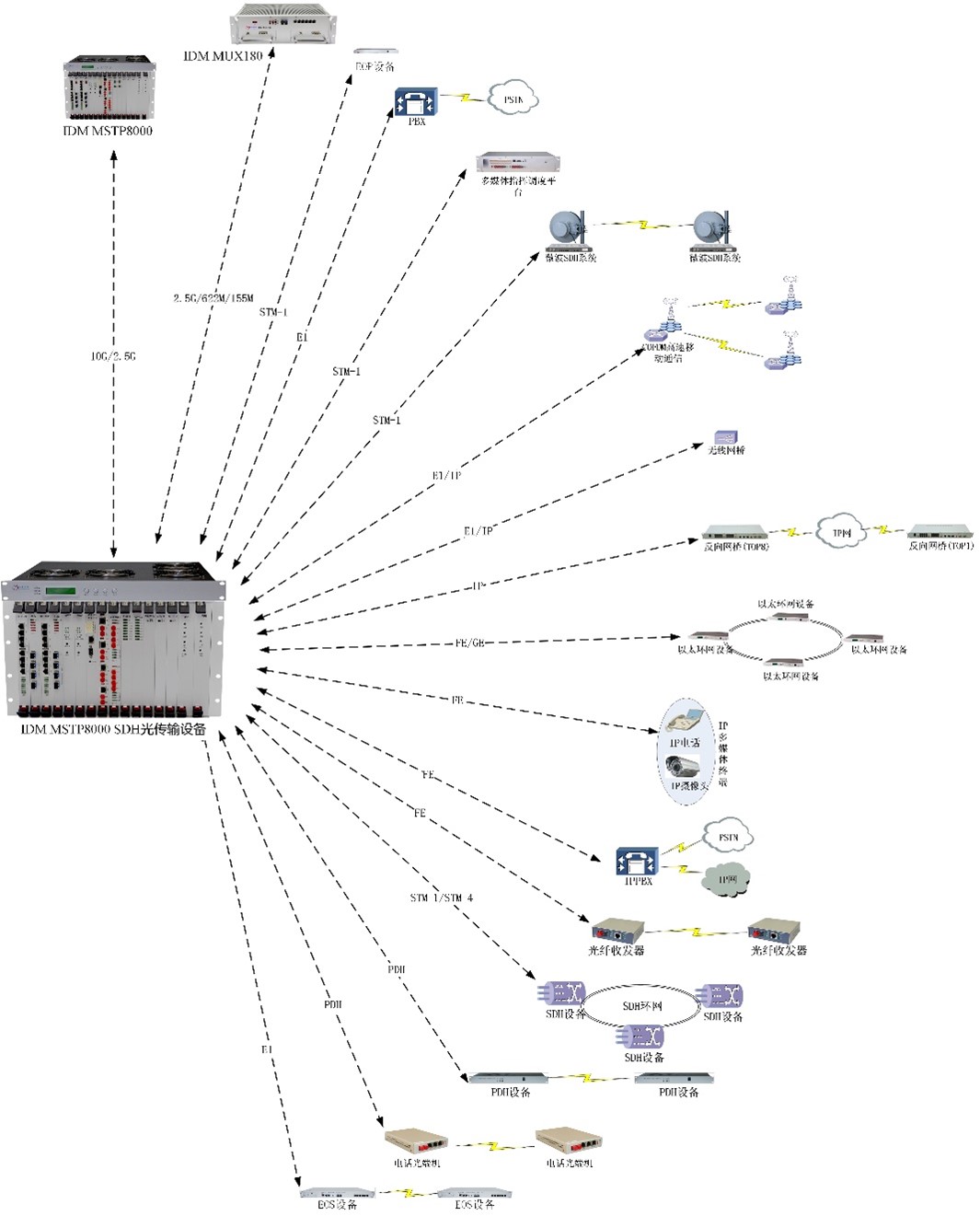

IV. Typical Applications
