High-Security E1 Dedicated Line Video Conference Transmission Solution

1. Solution Description

This solution aims to provide E1 transmission ports for video conference MCU (Multipoint Control Unit) and video conference terminals through SDH (Synchronous Digital Hierarchy) optical transmission equipment. E1 is a 2.048 Mbps digital transmission interface widely used for voice and data transmission. Through the SDH network, E1 service ports can provide stable and reliable transmission channels, ensuring high-quality video conference communication.

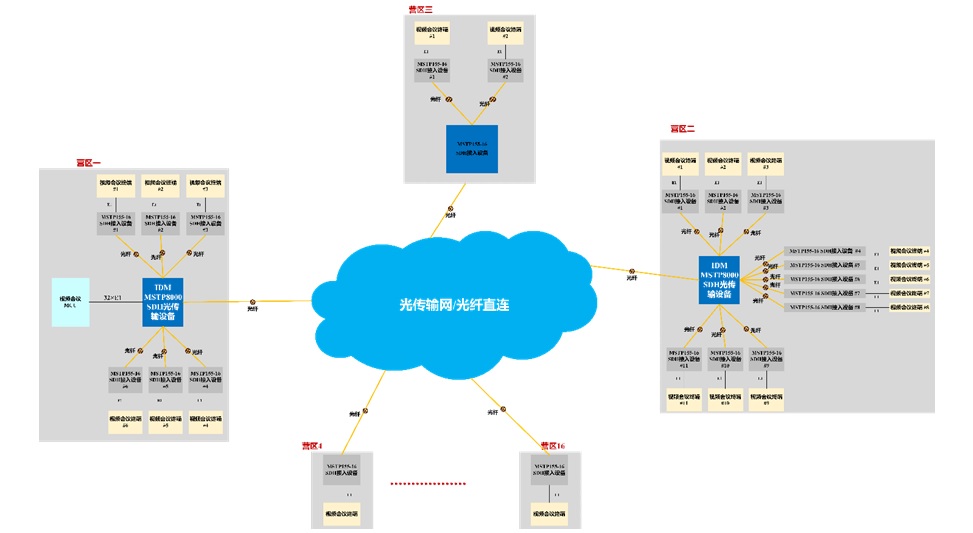

2. Solution Network Topology

3. E1 Dedicated Line vs. IP Networking Comparison

3.1 Bandwidth Exclusivity

• E1 Dedicated Line: The E1 dedicated line provides exclusive bandwidth of 2.048 Mbps, ensuring stable transmission and low latency for video conference signals. Due to bandwidth exclusivity, it is not affected by other network traffic, making it particularly suitable for video conference applications with high real-time requirements.

• IP Networking: IP networks typically adopt a shared bandwidth model, where multiple applications share the same bandwidth resources. During network congestion, video conference quality may be affected, resulting in latency, jitter, or packet loss.

3.2 Confidentiality

• E1 Dedicated Line: The E1 dedicated line provides a point-to-point physical connection, and data transmission does not pass through public networks, offering high confidentiality. It is suitable for scenarios with high data security requirements, such as video conferences in government, finance, and other sectors.

• IP Networking: Data transmission over IP networks passes through multiple routers and switches, posing risks of eavesdropping or attacks. Although encryption technologies can improve security, potential security threats cannot be completely eliminated.

3.3 Reliability

• E1 Dedicated Line: The E1 dedicated line is based on the SDH network, featuring high reliability and self-healing capabilities. The SDH network supports ring network protection, enabling rapid path switching in the event of fiber breaks or equipment failures to ensure uninterrupted services.

• IP Networking: The reliability of IP networks depends on redundant design of network equipment and routing protocols. Although modern IP networks possess certain redundancy capabilities, single points of failure may still cause service interruptions in complex network environments.

3.4 Latency and Jitter

• E1 Dedicated Line: The E1 dedicated line provides fixed transmission latency with minimal jitter, making it suitable for video conference applications with high real-time requirements.

• IP Networking: Latency and jitter in IP networks are affected by factors such as network congestion and routing selection, which may lead to fluctuations in video conference quality.

4. Summary of E1 Dedicated Line Advantages

• Exclusive Bandwidth: The E1 dedicated line provides exclusive bandwidth of 2.048 Mbps, ensuring stable transmission and low latency for video conference signals, free from interference by other network traffic.

• High Confidentiality: Through physical isolation, the E1 dedicated line ensures data transmission does not pass through public networks, offering high confidentiality and suitability for scenarios with high data security requirements.

• High Reliability: The E1 dedicated line based on the SDH network features high reliability and self-healing capabilities, enabling rapid recovery in the event of network failures to ensure business continuity.

• Low Latency and Jitter: The E1 dedicated line provides fixed transmission latency and extremely low jitter, ensuring high-quality real-time video conference communication.

5. Conclusion

For video conference applications requiring high stability, high confidentiality, and low latency, the E1 dedicated line provides an ideal solution through SDH optical transmission equipment. In comparison, although IP networking offers certain advantages in flexibility and cost, it cannot match the E1 dedicated line in terms of bandwidth exclusivity, confidentiality, and real-time performance. Therefore, in scenarios with high requirements for video conference quality, the E1 dedicated line is the more appropriate choice.
