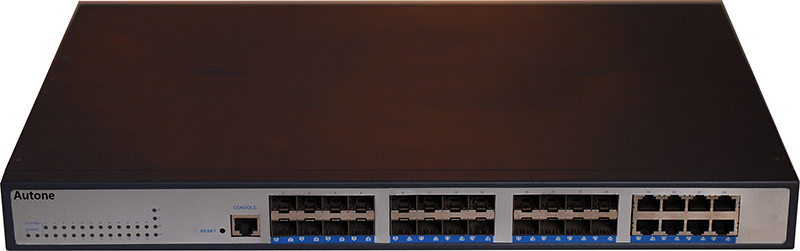

IDM S328GF-24SFP 10G Uplink 24-Port All-Fiber Aggregation Switch
The S328GF series fiber Ethernet switches are specifically developed by our company for application environments such as building automation, security monitoring, smart cities, sky network systems, electronic police, and factory automation.<br>S328GF fiber Ethernet switches provide 1 to 4 10G SFP Plus ports, offering maximum convenience for high-speed uplink and stacking.<br>The S328GF fiber Ethernet switch series provides 24 x 1000Mbps SFP fiber interfaces, with optional single-mode/multi-mode and single-fiber/dual-fiber configurations. Standard transmission distance for single-model units is 20KM, with optional 40KM, 60KM, 80KM, and up to 200KM transmission distances available.<br>
Gallery
@@IMG0@@
Product Overview:
The S328GF series fiber Ethernet switches are specifically developed by our company for application environments such as building automation, security monitoring, smart cities, sky network systems, electronic police, and factory automation.
The S328GF fiber Ethernet switches provide 1 to 4 10G SFP Plus ports, offering maximum convenience for high-speed uplink and stacking.
The S328GF fiber Ethernet switch series provides 24 x 1000Mbps SFP fiber interfaces, with optional single-mode/multi-mode and single-fiber/dual-fiber configurations. Standard transmission distance for single-model units is 20KM, with optional 40KM, 60KM, 80KM, and up to 200KM transmission distances available.
The S328GF fiber Ethernet switch series provides 8 x 10/100/1000BaseT(X) RJ45 interfaces, supporting auto-adaptive 10Mbps/100Mbps/1000Mbps, full-duplex/half-duplex, and MDI/MDIX polarity auto-adaptation.
The S328GF fiber Ethernet switch series is specifically designed for fiber aggregation in central data rooms, supporting rich Layer 2/Layer 3 network switching functions such as VLAN, STP, QoS, ACL, and routing—making it an ideal choice for the central data room end of distributed network access.
The product adopts a high-performance network switching chip, ensuring all ports support non-blocking, wire-speed packet forwarding.
The product features a metal enclosure, offering an elegant, durable, and robust design, with an operating temperature range of -20°C to 70°C.
All fiber Ethernet switch products meet various indicators specified in CCC, CE/FCC, and EN 61000 standards, making them an ideal choice for project applications due to their high stability and reliability.
Product Features:
- 10G uplink, 1G fiber aggregation switch
- Full support for Layer 3 network switching functions
- Provides 4 x 10G SFP Plus ports
- Provides 24 x 1G SFP fiber interfaces
- Provides 8 x 1G Combo SFP + RJ45 electrical ports
- Complies with IEEE 802.3 standard
- Non-blocking, wire-speed forwarding across all ports
- Supports up to 4096 VLANs, compliant with 802.1Q standard VLAN
- Supports 802.1p QoS data priority transmission service
- Supports 9.6Kbyte jumbo frames
- Access Control List (ACL), supports Layer 2, Layer 3, Layer 4, and multiple protocol filtering
- Supports STP, RSTP, MSTP spanning tree protocols
- Supports routing functions
- Broadcast storm suppression, adjustable broadcast, multicast, and unicast traffic
- Operating temperature: -20°C to 70°C, operating humidity: 5% to 95% (non-condensing)
Specifications:
|
Item
|
Specification
|
Note
|
|
Data Ports
|
||
|
Interface
|
1 to 4 x 10G SFP Plus interfaces
|
|
|
24 x 1G SFP interfaces
|
||
|
8 x 1G RJ45 interfaces
|
||
|
Speed
|
10/100/1000Mbps, 10000Mbps
|
|
|
Switching Parameters
|
||
|
Communication Standard
|
Complies with IEEE 802.3 standard
|
|
|
MAC Address Table
|
32Kbps
|
|
|
Switching Delay
|
<1us
|
|
|
Packet Buffer
|
32Mbps
|
|
|
Data Switching Mechanism
|
Store-and-Forward
|
|
|
LED Indicators
|
||
|
Power
|
Power LED
|
|
|
Interface
|
Link/Act, Speed
|
|
|
Interface Type
|
||
|
Optical Port
|
SFP: SC, LC
|
|
|
Electrical Port
|
10/100/1000BaseT(X) RJ45
|
|
|
Power Connector
|
National Standard D-type Power Connector
|
|
|
Optical Port Parameters
|
||
|
Optical Port Type
|
SFP Optical Module
|
|
|
Transmission Distance
|
