Operable and Profitable Digital Community Construction Solution Based on Fiber Access

Table of Contents

1. Overview

2. Functions Implemented in the Digital Community

3. Current Status and Demand Analysis of Digital Community Construction

4. Raytrans Digital Community Solution

4.1 Overall Network Solution

4.2 Service Solution

4.2.1 VoIP Service Solution

4.2.2 High-Speed Broadband Service Solution

4.3 Community Communication Room Aggregation Access

4.4 Passive Optical Splitting in Office Building Unit Wiring Boxes

4.4.1 Management Service Center

4.4.2 Life Information Center

4.4.3 Property Management Center

4.5 Fiber Access for Residential Building Home Terminals

4.6 Security Center

4.7 Multimedia Emergency Command Center

4.8 Key Features of the Fiber Access Solution

5. Analysis of Operation and Profit Models

5.1 Analysis of Traditional Property Management Company Operation and Profit Models

5.2 Profitability Analysis of the Digital Community Fiber Optic Communication Network Operation Model

1. Overview

A community is the bond connecting a city with its residents. With the rapid development of multimedia technology, modern communication technology, and computer network technology, the proliferation of IPTV, and the "triple play" integration of telecommunications networks, computer networks, and cable television networks, there is a growing demand for communication systems that provide integrated digital community services. A digital community is built with the goal of serving residents and centered on their needs. Compared with traditional communities, a digital community provides more effective management, richer culture, and more comprehensive services.

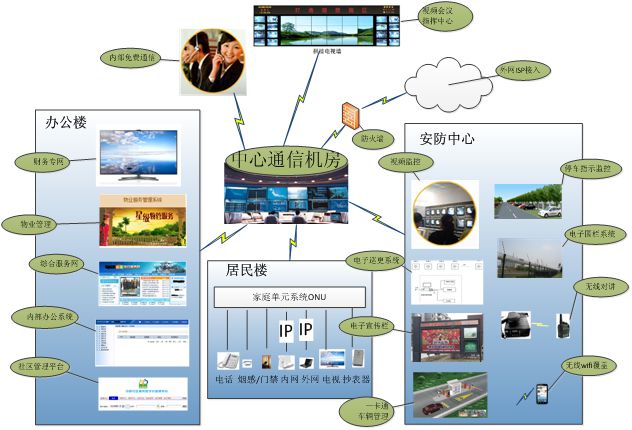

1.1 Community Communication Room Aggregation Access

The community communication room is the core for aggregation and switching of various services from office buildings and the community. It is equipped with our company's IDM MSAP-G3CP core OLT equipment, which mainly implements the following functions:

1. Provides local telephone internal switching, enabling free extension-to-extension calls between telephones within the community;

2. Provides trunk access to the telephone switching networks of operators such as China Unicom/China Mobile/China Telecom, enabling external call functions for the community;

3. Provides Ethernet service access to operators such as China Unicom/China Mobile/China Telecom, using an Ethernet firewall to isolate the internal and external networks and ensure information security;

4. Provides telephone trunk interfaces that can be connected to the telephone networks of office buildings and other residential buildings, enabling telephone interconnection among all units;

5. Provides a radio and television IPTV data interface, which can access IPTV television signals from the radio and television network to provide television services to office building users;

6. Provides remote meter reading data processing functions, enabling centralized management of water, electricity, and gas meter reading data for residential and office buildings;

7. Provides video surveillance and conferencing functions, enabling centralized retrieval and monitoring of remote network video signals at the central end, as well as video conferencing;

8. Dispatch servers and public address broadcast servers can be installed to implement additional functions based on meeting the customer's basic integrated service fiber access needs, supporting multimedia dispatching and public address broadcasting in the community;

9. The central end reserves secondary development interfaces for the digital community, providing centralized access for multimedia information such as community electronic fences, parking lot surveillance, community all-in-one cards, and community advertising through fiber access.

1.2 Passive Optical Splitting in Office Building Unit Wiring Boxes

The office building unit wiring box is an important node for the fiber optic cabling of this system. It provides optical splitting support for the fiber connections between the OLT equipment in the central communication room and the ONU equipment on each floor and in offices. It is passive optical splitting, requiring no power supply, and its installation location is flexible.

1.2.1 Management Service Center

The digital community management service center office mainly implements functions such as community government affairs, community medical services, community housekeeping, community education, community culture, community e-commerce, and business delivery.

1.2.2 Life Information Center

The community life information center office mainly consists of the following platforms: the network community communication network, the community information management platform, and the community information interaction platform.

1.2.3 Property Management Center

The integrated property management service center office consists of: the office park OA system, the community portal website, the remote intelligent meter reading system (water, electricity, gas), the background music and emergency broadcast system, and the building automation system.

1.3 Fiber Access for Residential Building Home Terminals

Residential building homes are nodes where ONU terminal equipment is installed, directly providing users with broadband, telephone, IPTV television, and remote meter reading data interfaces, using our company's IDM NT202 ONU terminal equipment. Depending on end-user requirements, one ONU terminal can be installed per household, or several ONU devices can be installed per floor, to meet the service needs of each household and floor. This terminal provides the following functions:

1. Provides a telephone interface for direct connection to home telephones;

2. Provides a network interface for direct connection to user's internet access devices, such as computers and routers;

3. Provides a network interface for connecting to an IPTV set-top box, providing network television functions;

4. Provides a network interface for connecting to network cameras, enabling video signal upload to the surveillance center;

5. Provides remote meter reading interfaces (RS485/RS422, etc.) for connecting to water, electricity, and gas meters in office buildings, enabling meter reading data upload to the surveillance center.

1.4 Security Center

The community security system consists of the emergency command center, video surveillance and perimeter anti-theft system, electronic patrol system, vehicle access surveillance and automatic access control system, intelligent all-in-one card system, home security system, and electronic call center system.

1.5 Multimedia Emergency Command Center

The multimedia emergency command center consists of the following:

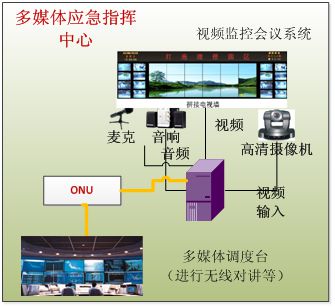

It is worth mentioning that Raytrans' video wall technology is currently the most advanced in China and is at the industry-leading level. The size and number of video wall screens can be arbitrarily spliced as needed, and installation is convenient. It supports various video signal modes, supports multiple inputs with arbitrary single-channel display output, and also supports single-channel input with multiple display outputs. The display quantity and position can be arbitrarily selected, and can be arbitrarily enlarged or reduced. This makes on-site command and video conferencing very convenient.

1.6 Key Features of the Fiber Access Solution

1. Full fiber optic transmission access

Business communication from the community central communication room to office buildings and residential buildings all uses fiber optic transmission technology. This solution adopts EPON technology to achieve full high-speed fiber-to-the-home coverage.

2. Community telephone internal switching, independent operation

The community central communication room uses our company's IDM 300D and SIP voice server to implement internal switching for community telephones, allowing the community virtual operator to independently operate telephone services and provide free internal telephones to the community.

At the same time, through trunk interfaces, it can be connected to operator telephone switching networks, as well as to the group headquarters and other community telephone systems, enabling telephone interconnection within the group.

3. Internal and external network isolation through firewall

By equipping the corresponding network firewall, isolation between the community internal and external networks is provided, ensuring information security.

4. Provides community security command and dispatch, video intercom, and wireless intercom functions

The central room is equipped with our company's IDM MCC multimedia dispatch switch. Relying on the community fiber optic network, it can provide multi-means dispatching for community security personnel, mobile vehicles, etc., enabling dispatching of fixed telephones, mobile phones, and wireless intercoms.

5. Supports video surveillance and video conferencing functions

The central room is equipped with our company's IDM Admux software system, which can implement video surveillance and video conferencing functions. It provides the following functions:

Ø Supports instant text chat

Ø Audio/video calls and recording

Ø File sending and receiving

Ø Audio/video conferencing and photo taking; when bandwidth is insufficient, audio/video code streams can be adjusted to control transmission bandwidth; conference functions can control speakers' speech and video display through a host setting, and can invite people to join the conference and remove participants

Ø Screen sharing, document sharing, media sharing, and electronic whiteboard

Ø Customizable software skin

Ø Personal information management, group management, contact management, and address book management

Ø Supports VoIP telephone functions, call records and history, mobile phone SMS, fax, and email sending/receiving

Ø Surveillance image access, surveillance intercom, and PTZ control

2 Analysis of Operation and Profit Models

2.1 Analysis of Traditional Property Management Company Operation and Profit Models

Traditional property management companies have two ways to generate profit: first, by charging property management fees to owners for providing basic services; second, by charging labor fees to owners for providing value-added services.

Basic services include: repair, maintenance, and upkeep of buildings and equipment; management of environmental sanitation, safety and fire protection, cleaning, and greening. Given China's current level of economic development and owners' income levels, the state generally sets a pricing or guidance price for this fee, which limits the profit margin (for example, the maximum profit margin for general residential community property management is stipulated at around 10%). Therefore, property management companies cannot obtain high profits from basic services. Their profit model also has significant limitations: narrow business thinking, few profit channels, and small profit space.

Value-added services include: milk and newspaper delivery, child pick-up and drop-off, interior decoration, electrical appliance repair, and business services. The value created by value-added services for owners lies in: providing convenience for owners, providing information to owners, and saving owners' time. Although most property management companies in China currently offer value-added service items to compensate for insufficient profits, due to limitations in their own resources, capabilities, and personnel quality, low service levels (mainly labor-intensive), and few service items, the profit space of value-added services has not yet been fully exploited by property management companies.

2.2 Profitability Analysis of the Digital Community Fiber Optic Communication Network Operation Model

Digital community construction effectively builds a communication, exchange, and business bridge between property services and neighborhood life. It makes the relationship between property service organizations and community residents, and between residents themselves, closer, making life more fulfilling and colorful. At the same time, through brand-new digital community services, it innovates the property service profit model, adheres to the principle of combining welfare services with operational services, and makes property management services more "profitable." The main profit models include the following aspects:

1. Sharing fixed telephone fees with operators

2. Sharing internet bandwidth fees with ISPs (including operators)

3. Sharing program traffic fees with IPTV providers

4. Charging channel service fees to water, electricity, and gas meter departments

5. Providing channels for elevator management departments and fire protection departments

6. Providing network windows for advertising companies (displaying advertisements on the video doorbell in users' homes; those willing to accept advertisements can be exempted from video doorbell usage fees, etc.)

7. Collection of heating fees and property management fees (via third-party payment, etc.)

8. Community e-commerce.

Virtual operators can also provide services to other departments, such as five-party intercom transmission for elevator management units, fire protection data transmission, etc. These enterprise-oriented services are all paid services, but they save a lot compared with direct investment by these enterprises.

The recent national implementation of tiered electricity pricing has adopted multiple approaches (time-of-use metering, remote real-time meter reading). Time-of-use meters still require personnel to conduct on-site spot checks, and the investment by power utilities in remote real-time meter reading is substantial. The main methods employed include power line carrier communication, GSM uplink transmission, and dual-PON structure meter reading — all of which are costly and serve a single purpose. Since fiber connectivity to households is already established, adding an electricity meter reading service as an additional user is very simple. This not only eliminates the need for meter readers to visit premises, but also enables real-time transmission of user data to the power utility operator.

Not only can electricity meters be read remotely, but water meter and gas meter data can also be transmitted over the same fiber, eliminating meter readers for these utilities as well, while adding an extra layer of security for the community. Community virtual operators can also earn three additional meter-reading service fees. There are also other services that can leverage community public construction funds, interfacing through the home media gateway to improve community management quality, supported by property management fees, and providing more household services:

1. Electronic patrol systems for security companies
2. Electronic fencing and video intrusion alarms
3. Video surveillance and audio/video intercom
4. Community streetlight control
5. Community emergency broadcasting (background music)
6. Community video bulletin boards
7. Public parking space monitoring and vacancy display signs
8. Video care for elderly residents in the community
9. Remote video care for community clinics
10. Pet monitoring for residents
